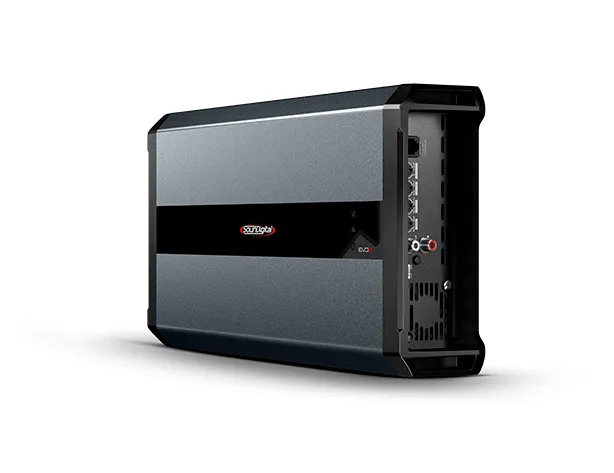

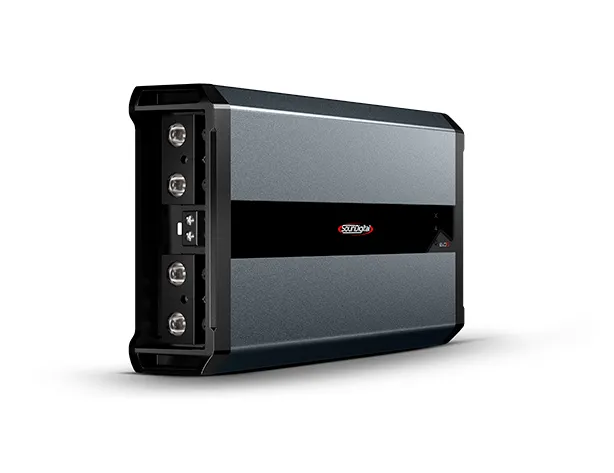

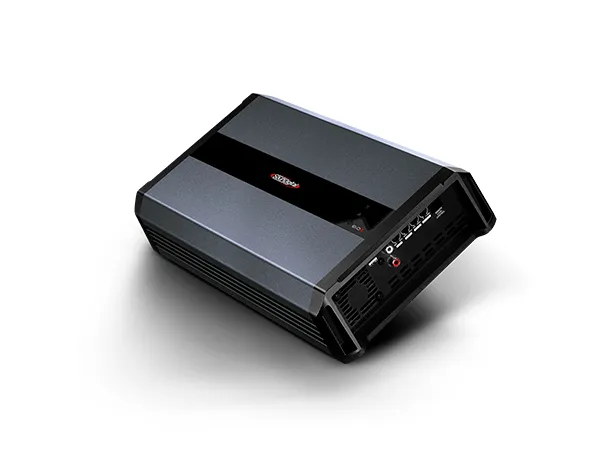

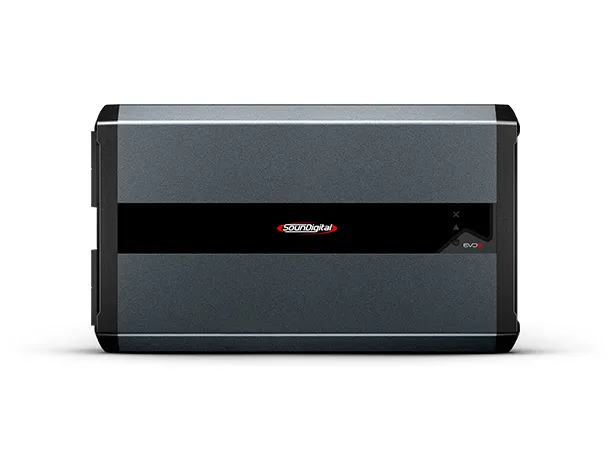

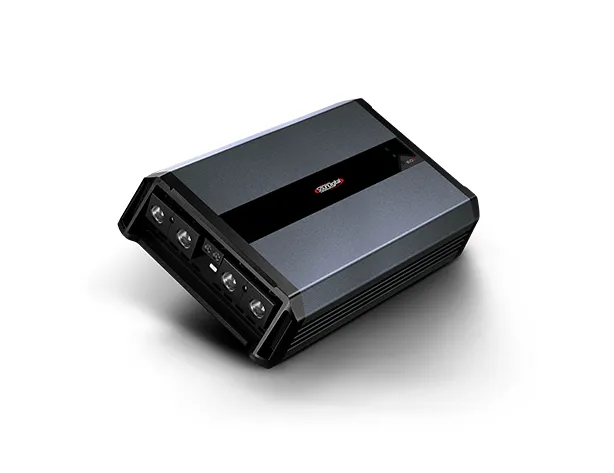

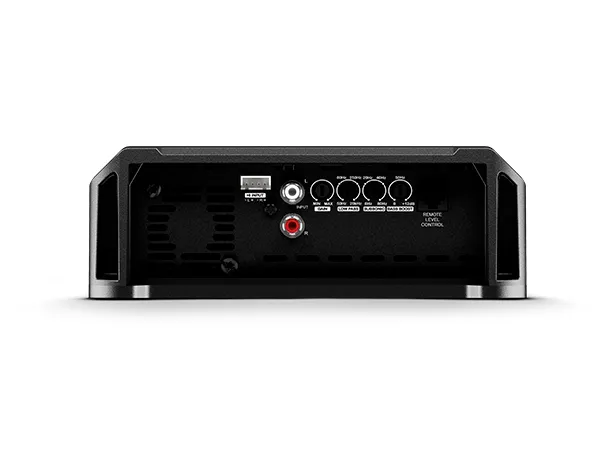

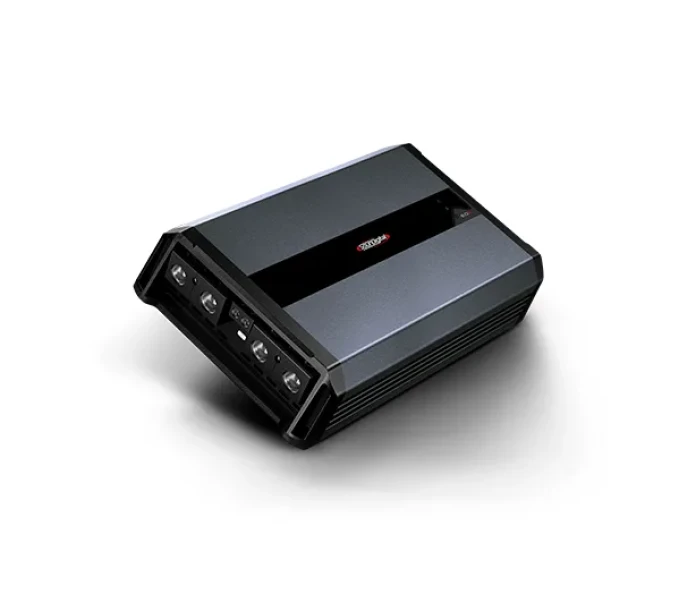

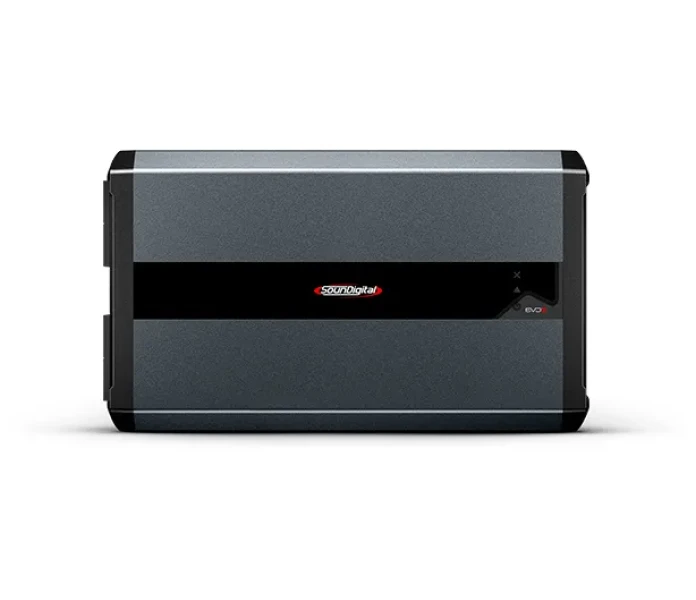

SounDigital 8000.1 EVO5 1 Ohm

SD8000.1-1 EVO5
Mono amplifier
8000W
1 Ohm model
Excellent price / quality ratio!
Read more
Description
Specifications

Description

The 8000.1 EVO 5 is a compact and modern amplifier that delivers 8000W RMS of power in 1 channel.

Incorporated with the innovative MCPCB board. Increasing your efficiency and ensuring much more consistent performance.

Specifications

Compatible with SD-RLC Remote level control.

Power @ 4Ω: 1 X 3844 WRMS
Power @ 2Ω: 1 X 5360 WRMS
Power @ 1Ω: 1 X 8000 WRMS

Frequency Response (-3dB):

8Hz ~ 20kHz

Subsonic (12dB/oct):

8Hz ~ 80Hz

Low Pass filter (12dB/oct):

50Hz ~ 20kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V ~ 16V

SNR

@ 1Ω: 92dB
@ 2Ω: 85dB

Input Sensitivity (RCA):

0.2V ~ 2V

Input Sensitivity (High Level input):

1.3V ~ 15V

Current Draw (music):

381A

Current Draw (max.)

762A

Total Efficiency:

80%

Damping Factor (@100Hz nominal impedance)

10000

Power Cable:

70mm² (00 AWG)

Speaker Cable

2 x 10mm² (7 AWG)

Recommended Fuse (music):

2 x 200A

Recommended battery (minimum):

2 x 220Ah

Width:

7.1″ / 18 cm

Length:

12.2″ / 31 cm

Height:

2.5″ / 6.32 cm

Weight:

8.79 lb / 3.99 kg

Älä kytke vahvistinta alle nimelliskuorman!

Do not run your amp under rated impedance!.
