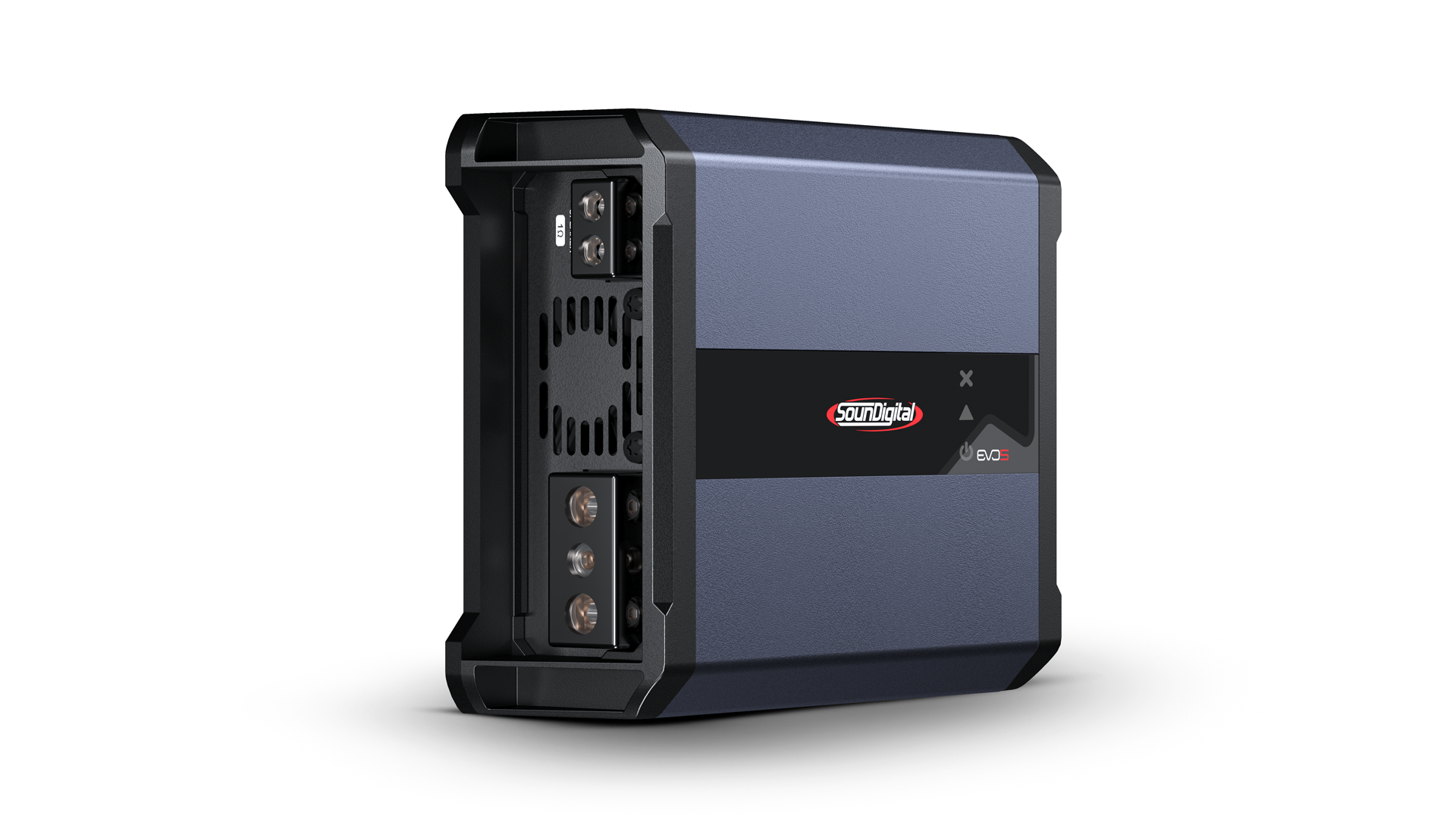

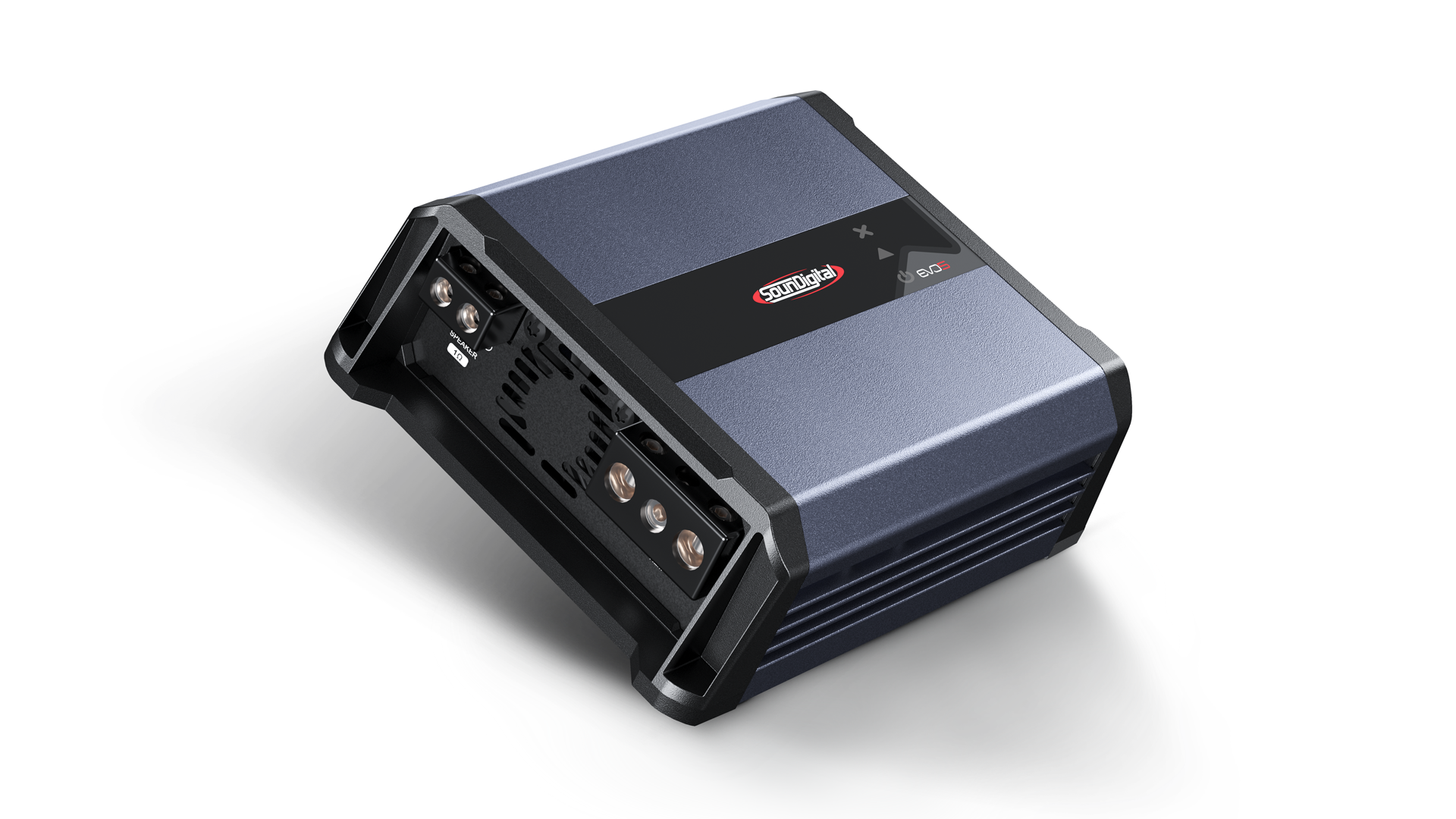

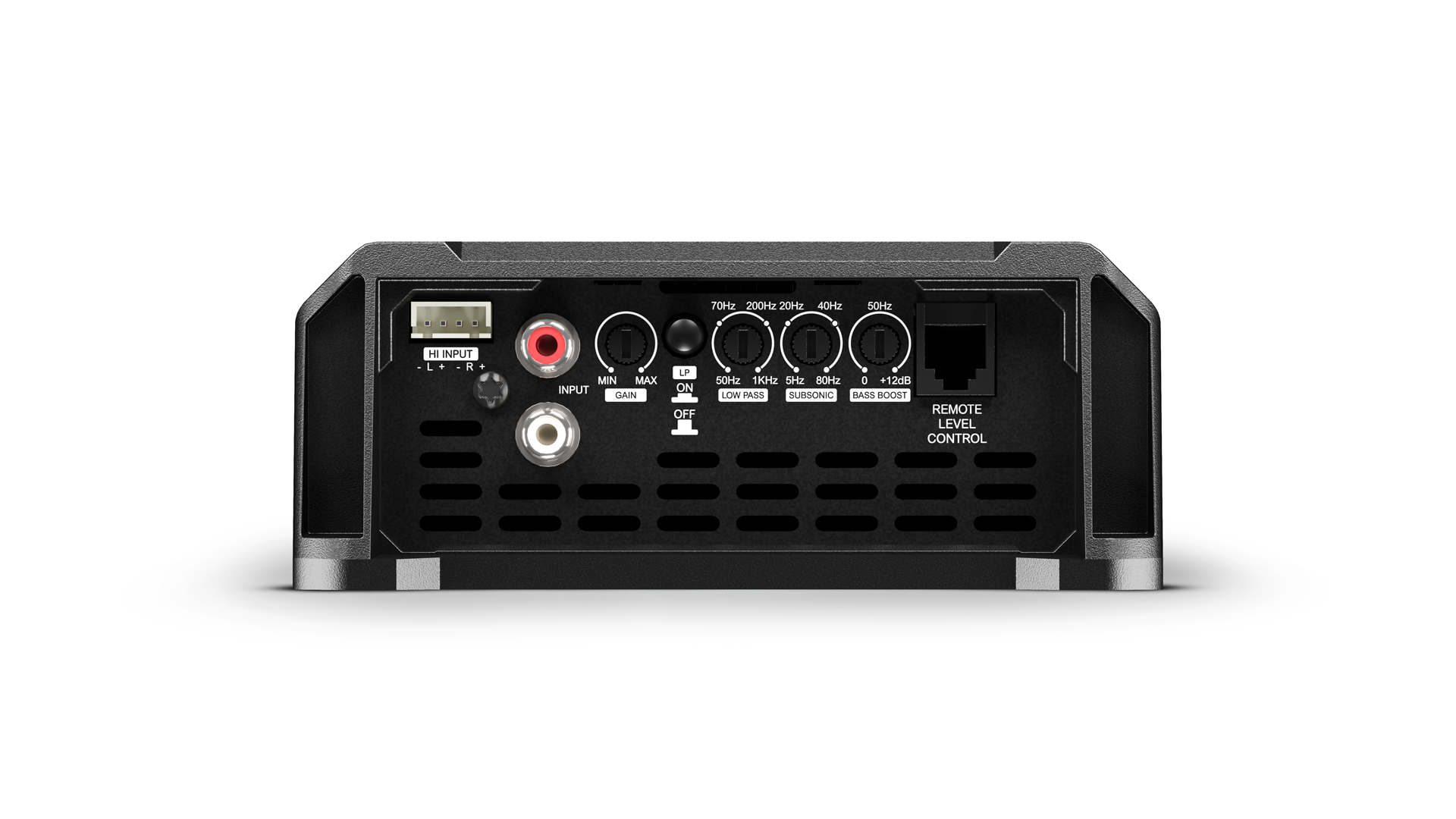

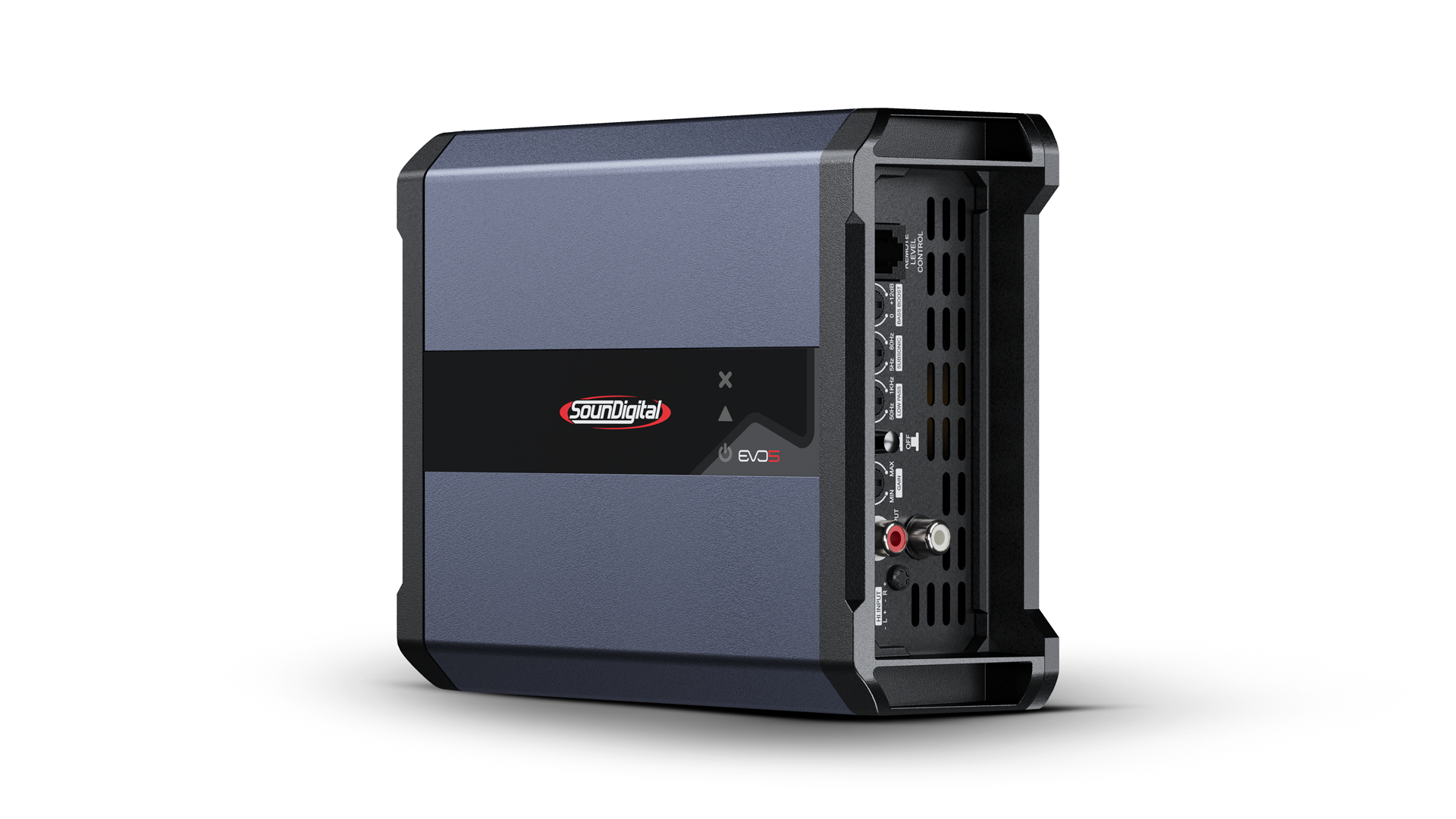

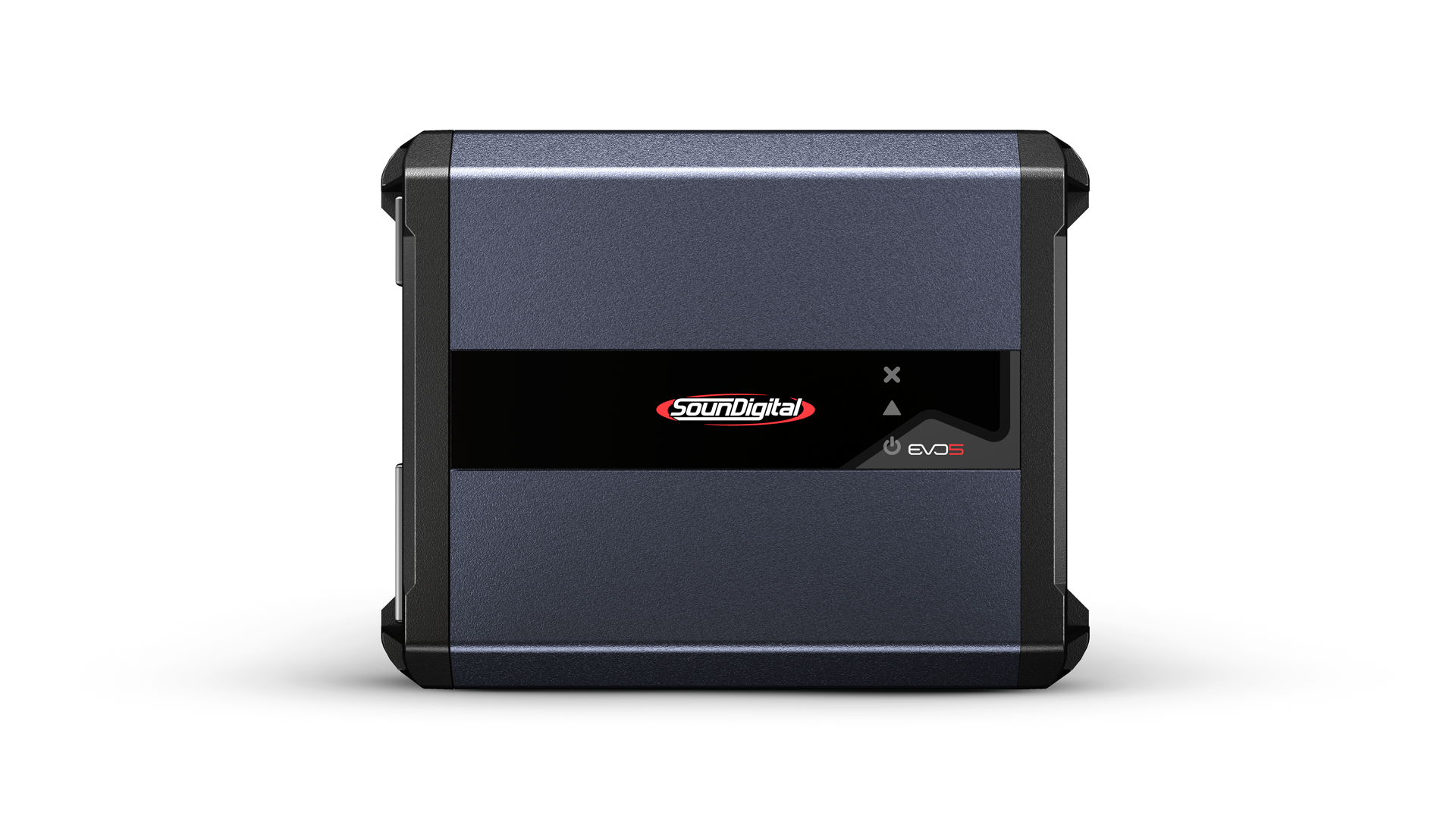

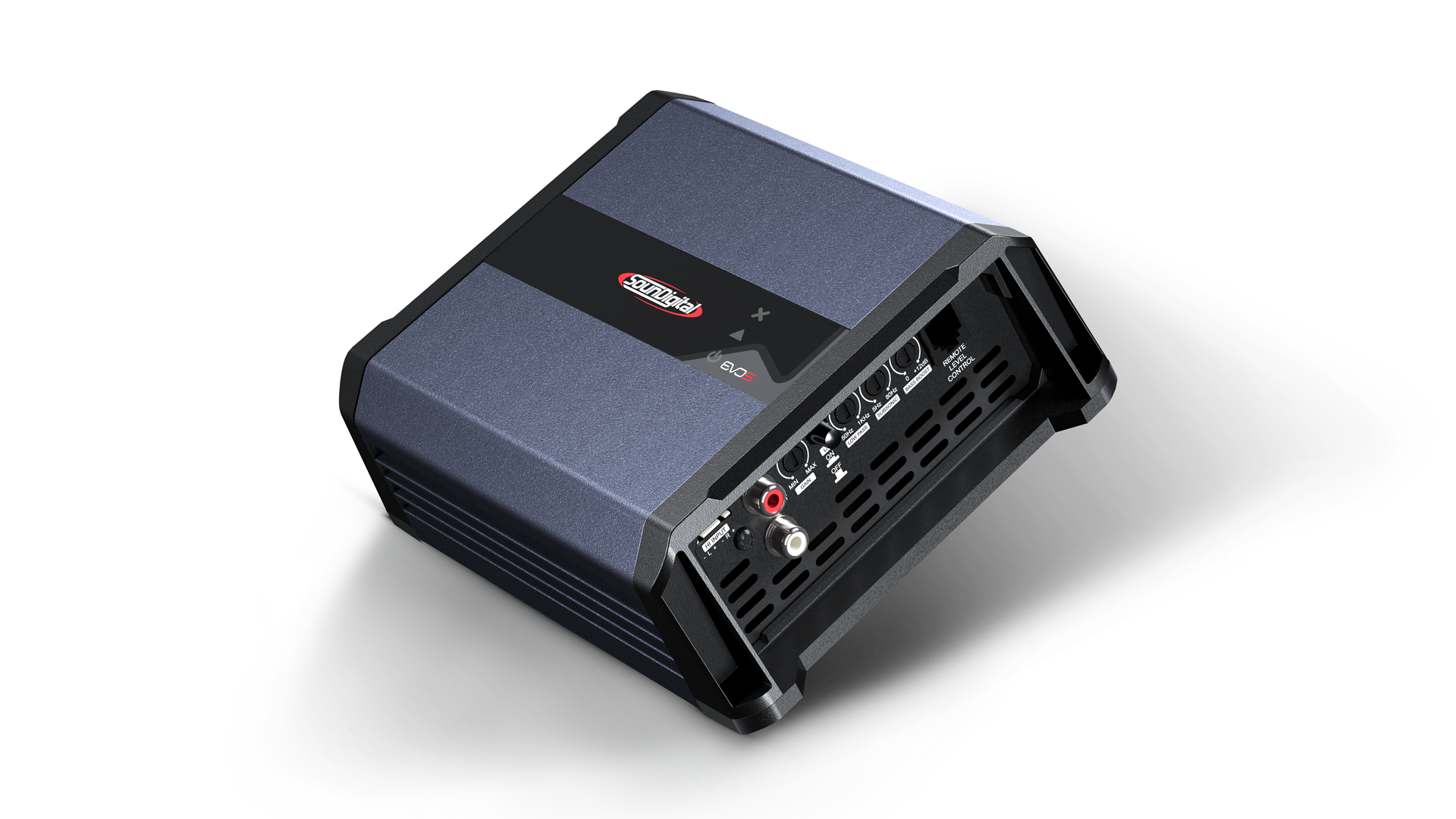

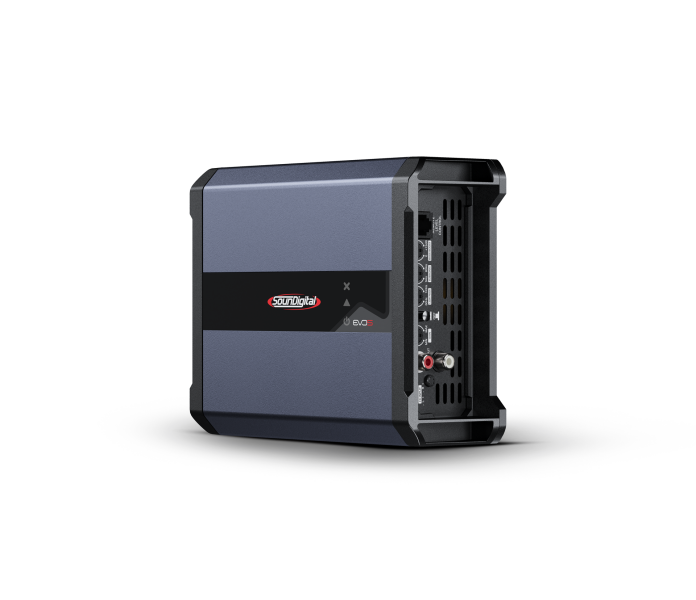

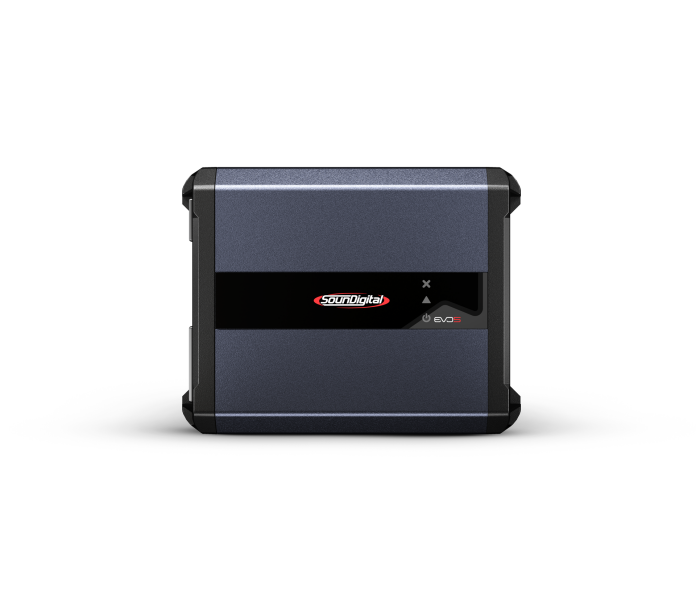

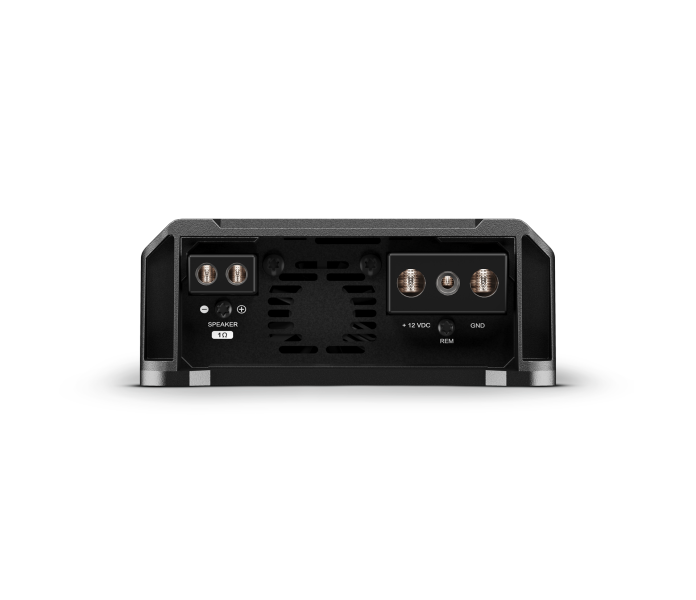

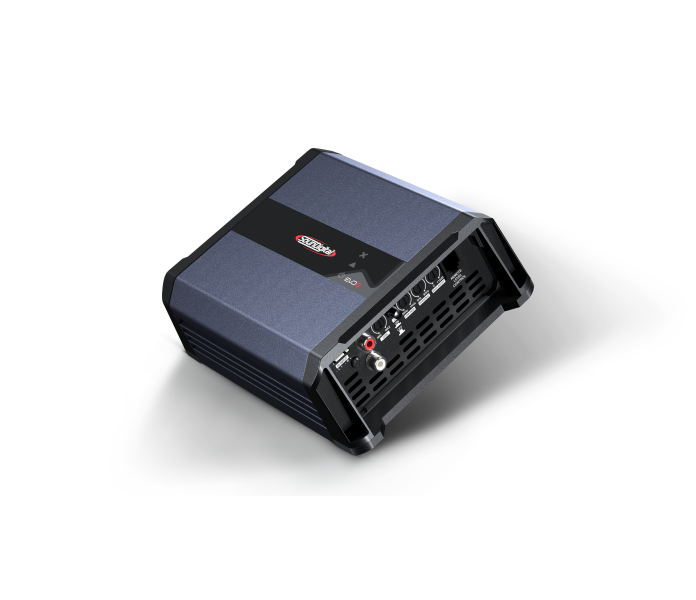

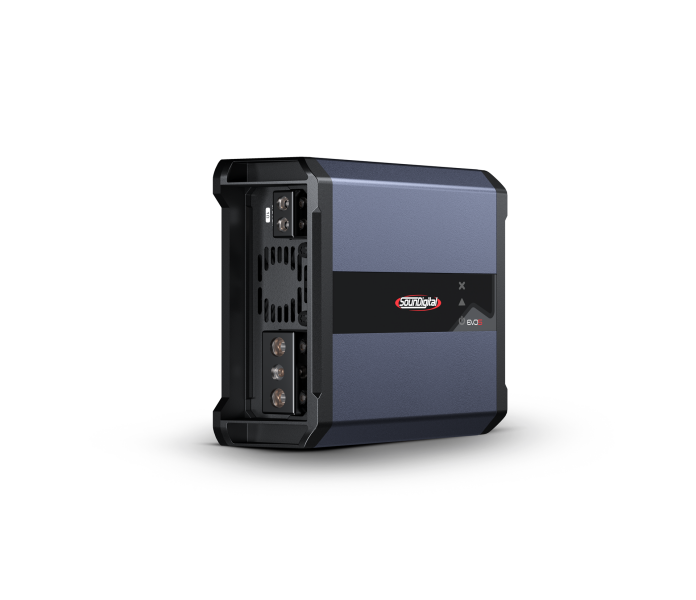

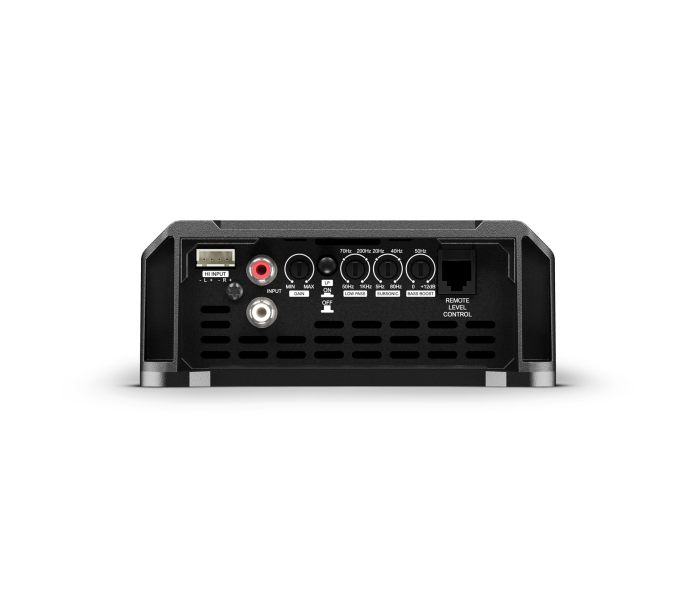

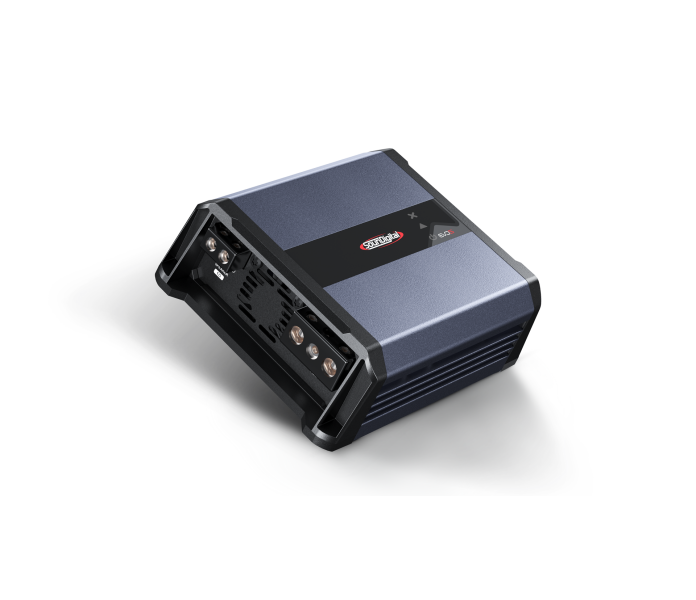

SounDigital SD1600.1 EVO 5.0 - 2 ohm

EAN: 7898644525330
SD1600.1-2 EVO5
1 Channel amplifier
Read more
Description
Specifications

Description

The 1600.1 EVO 5 is a compact, modern amplifier that delivers 1600W RMS of power over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Specifications

Power @ 4Ω: 1 X 1056 WRMS
Power @ 2Ω: 1 X 1600 WRMS
Power @ 1Ω: N/A

Frequency Response (-3dB):

5Hz ~ 25kHz

Subsonic Filter:

5Hz ~ 80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V ~ 16V

Signal-Noise Ratio:

1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

1Ω: 75A
2Ω: 71A
4Ω: 69.4A

Current Draw (Max):

1Ω: 149A
2Ω: 143A
4Ω: 138.8A

Total Efficiency:

1Ω: 85%
2Ω: 89%
4Ω: 91.5%

Damping Factor:

2000

Power Cable:

16mm² (5 AWG)

Audio Output Cable:

2 x 1.5 mm² (15 AWG)

Recommended Fuse (Music):

80A

Recommended Battery:

80Ah

Width:

13.6 cm / 5.4 in

Length:

18 cm / 7.1 in

Height:

5.48 cm / 2.1 in

Weight:

1.13 Kg.
