SoundQubed P4-75

P4-75
SoundQubed 4x75w Amplifier
Read more
Description
Specifications

Description

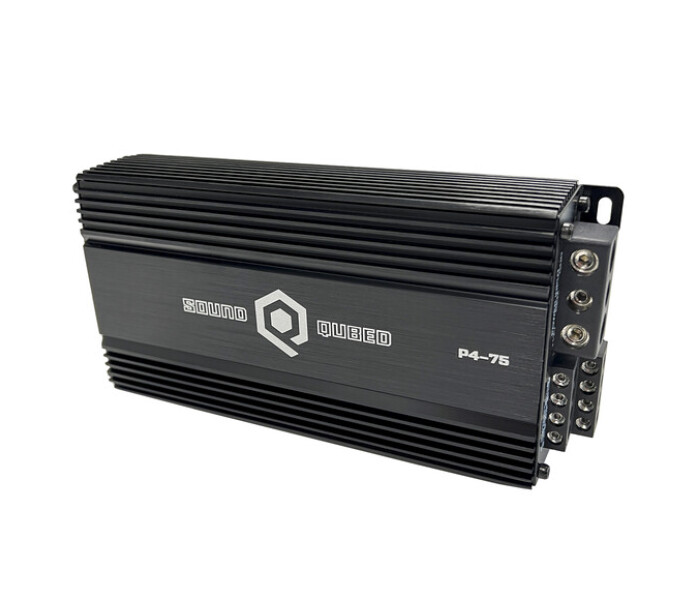

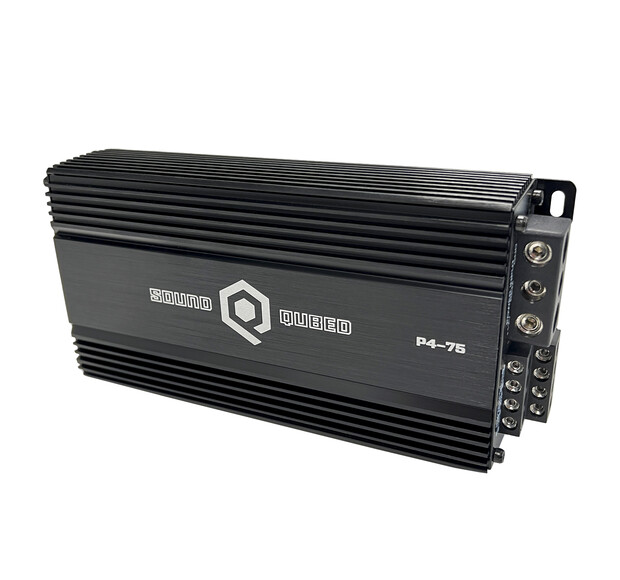

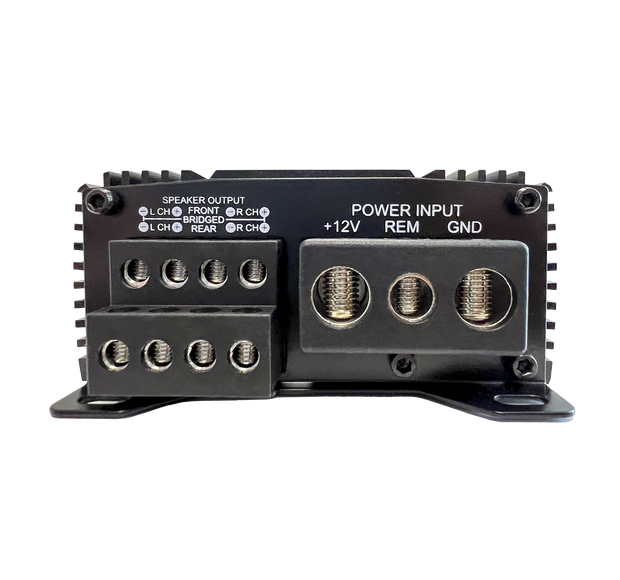

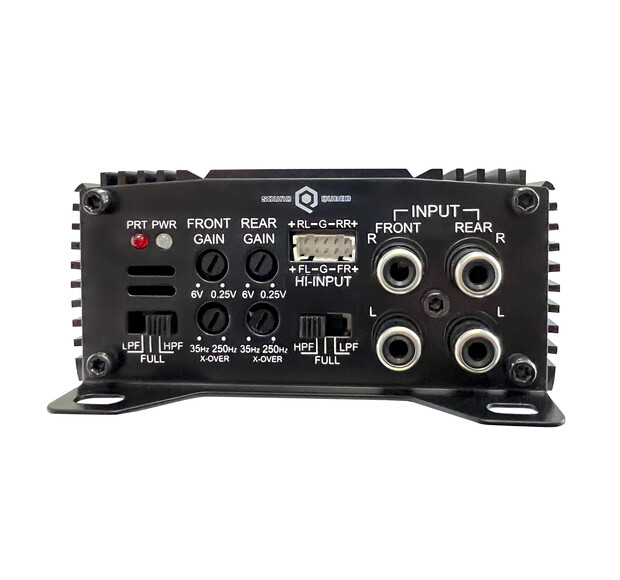

SoundQubed P4-75 is mini chassis amp designed to make space constrained installations a breeze. Don’t be fooled by its small stature in 4 ohm bridged mode this little powerhouse can produce over 2 x 120Watts The physical size of these amplifiers is very small so installation is painless even in a tighter car. The amplifiers also have speaker-level inputs, so you can connect to the car′s original player. - Great sound quality - Mosfet power supply amplifier - 4 gauge set screw power terminals - 12 gauge set screw speaker terminals - Variable 12dB/oct crossovers - 5-way protection: Speaker short, thermal, overload, HI/LOW voltage, DC offset

Specifications

Operating voltage: 10-16V
Test Voltage: 14.4V
Channels: 4
Cont wattage @4 ohms: 4x 65w / 2x 120w
Cont wattage @2 ohms: 4x75w
Dynamic wattage: 600w
Max current draw ( amps ): 30A
RCA input sensitivity: 6 - 2.5V
High level input sensitivity: 20 - 1.1V
S/N Ratio (dB) 85
Damping factor: 70
Frequency response: 10 - 30000Hz
THD: 0.1%
High pass filter: 35 - 250Hz
Subsonic filter: 35 - 250Hz
Low pass filter: 35 -250Hz
Dimensions: 6.69 x 386 x 1.67 inches.
