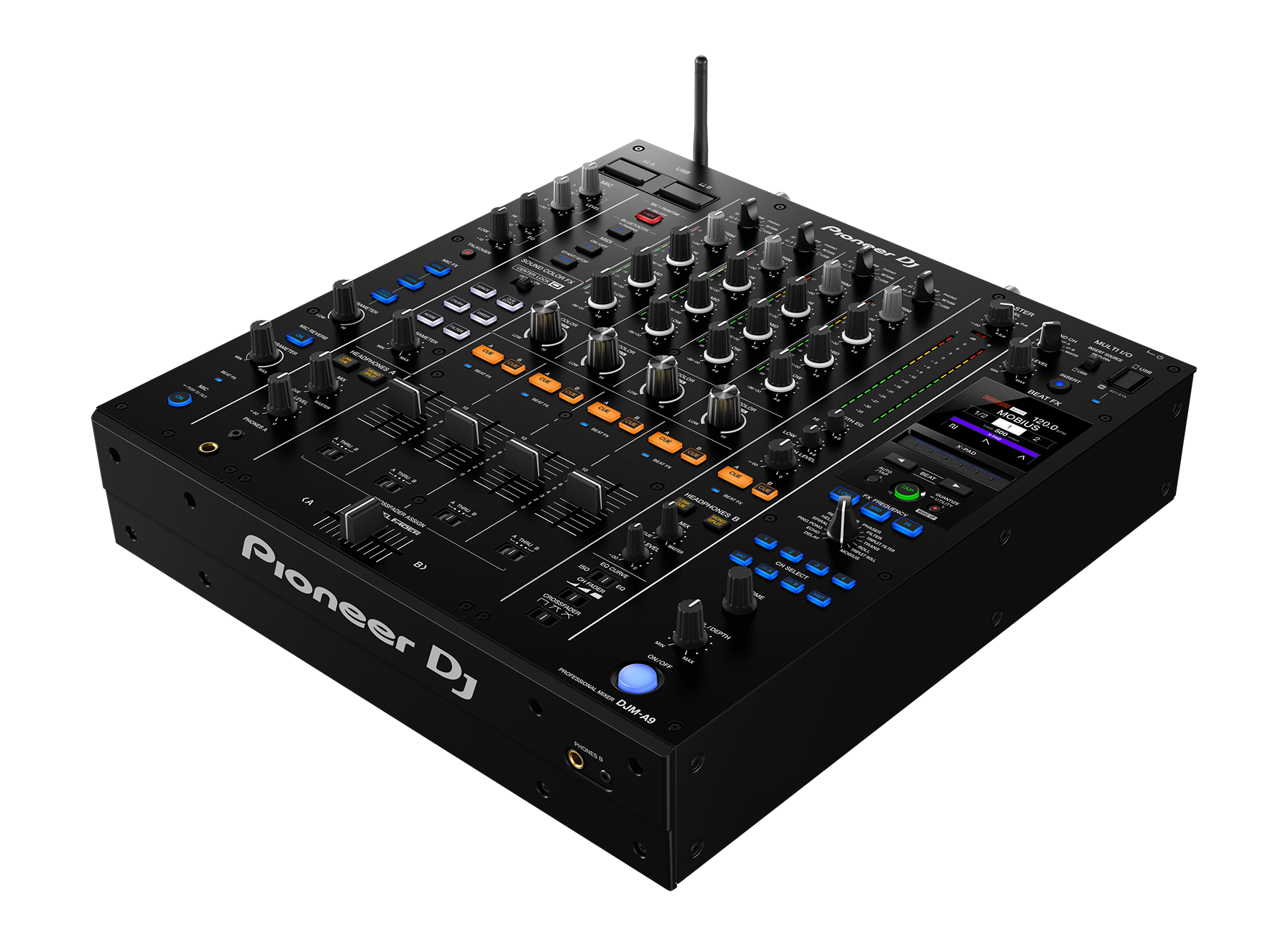

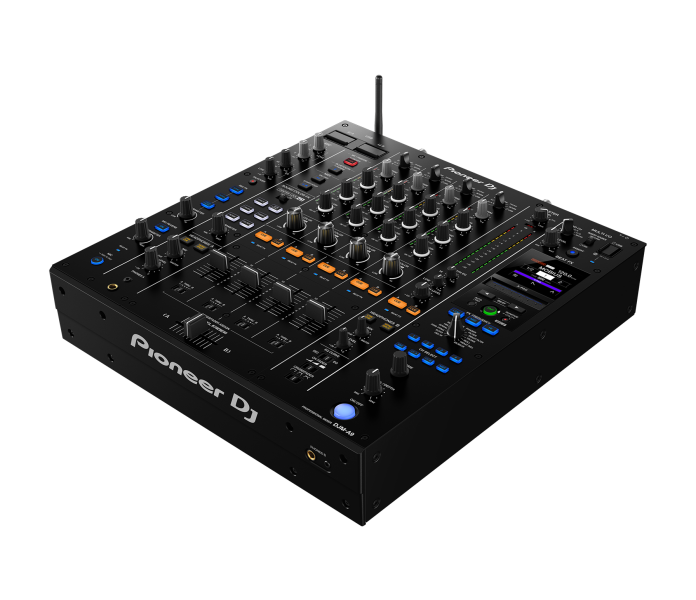

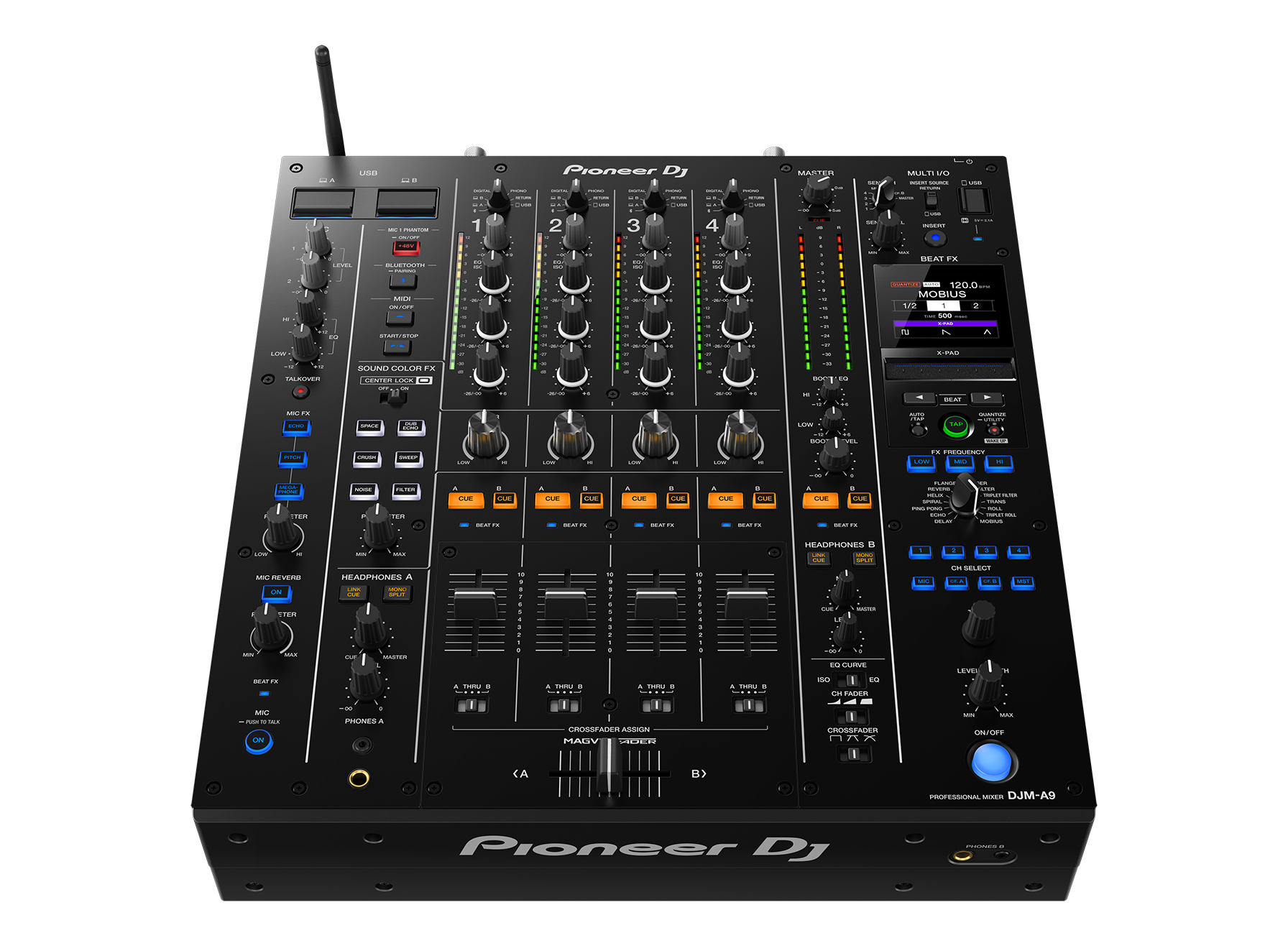

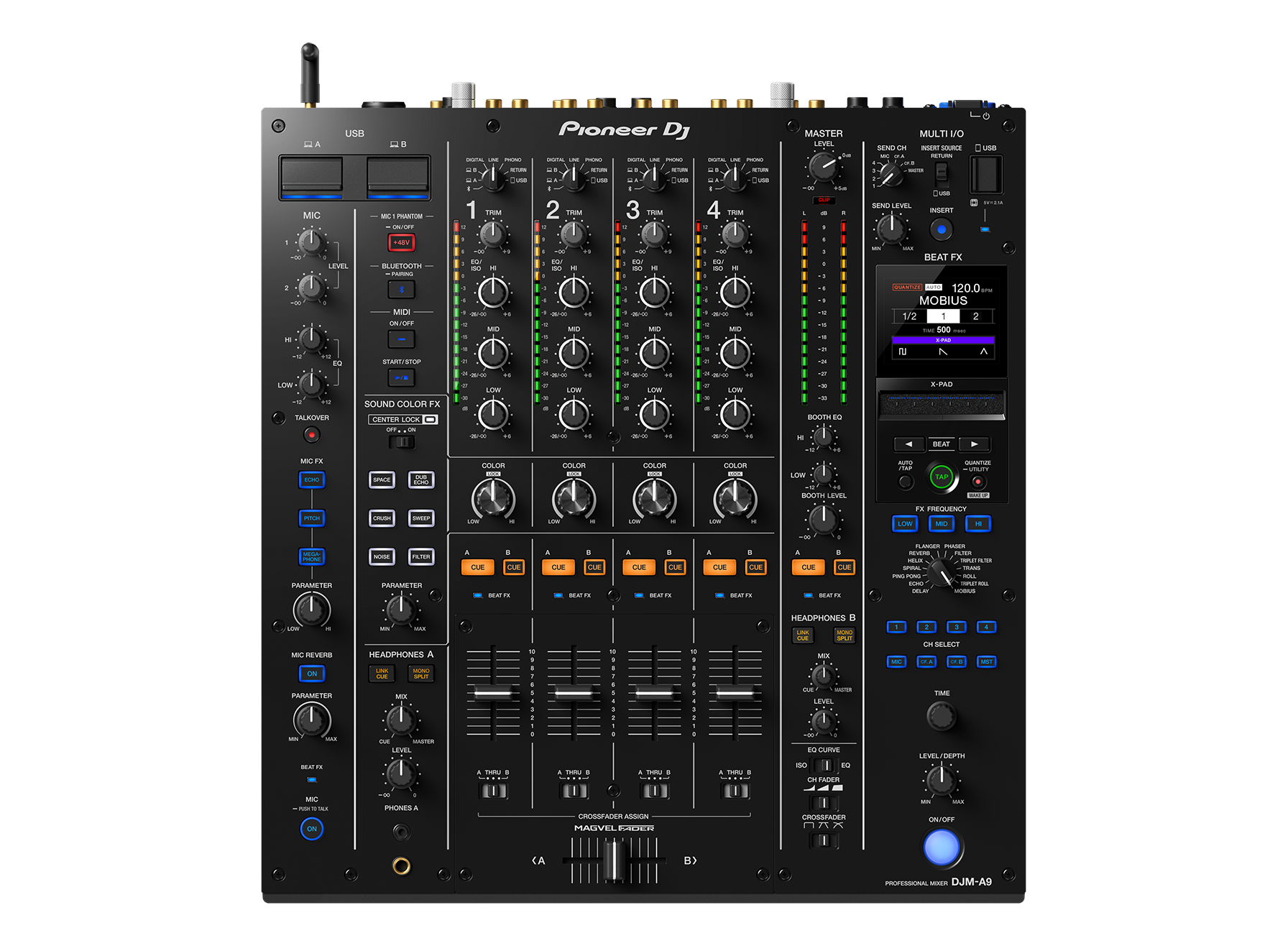

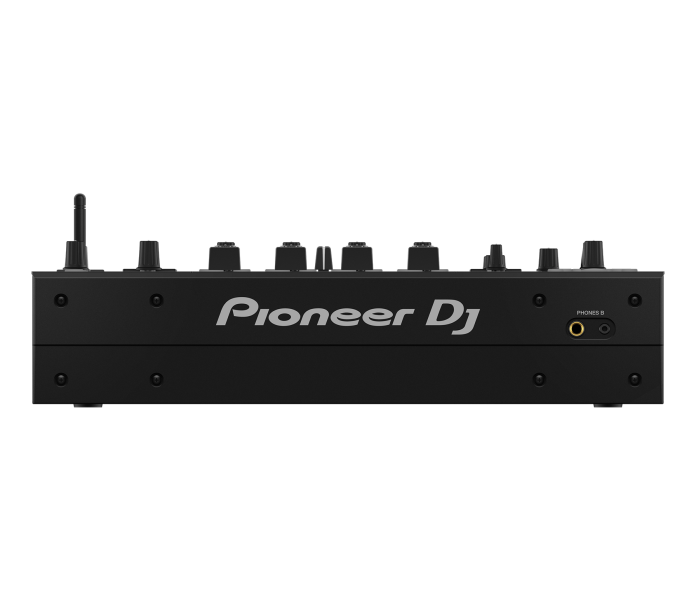

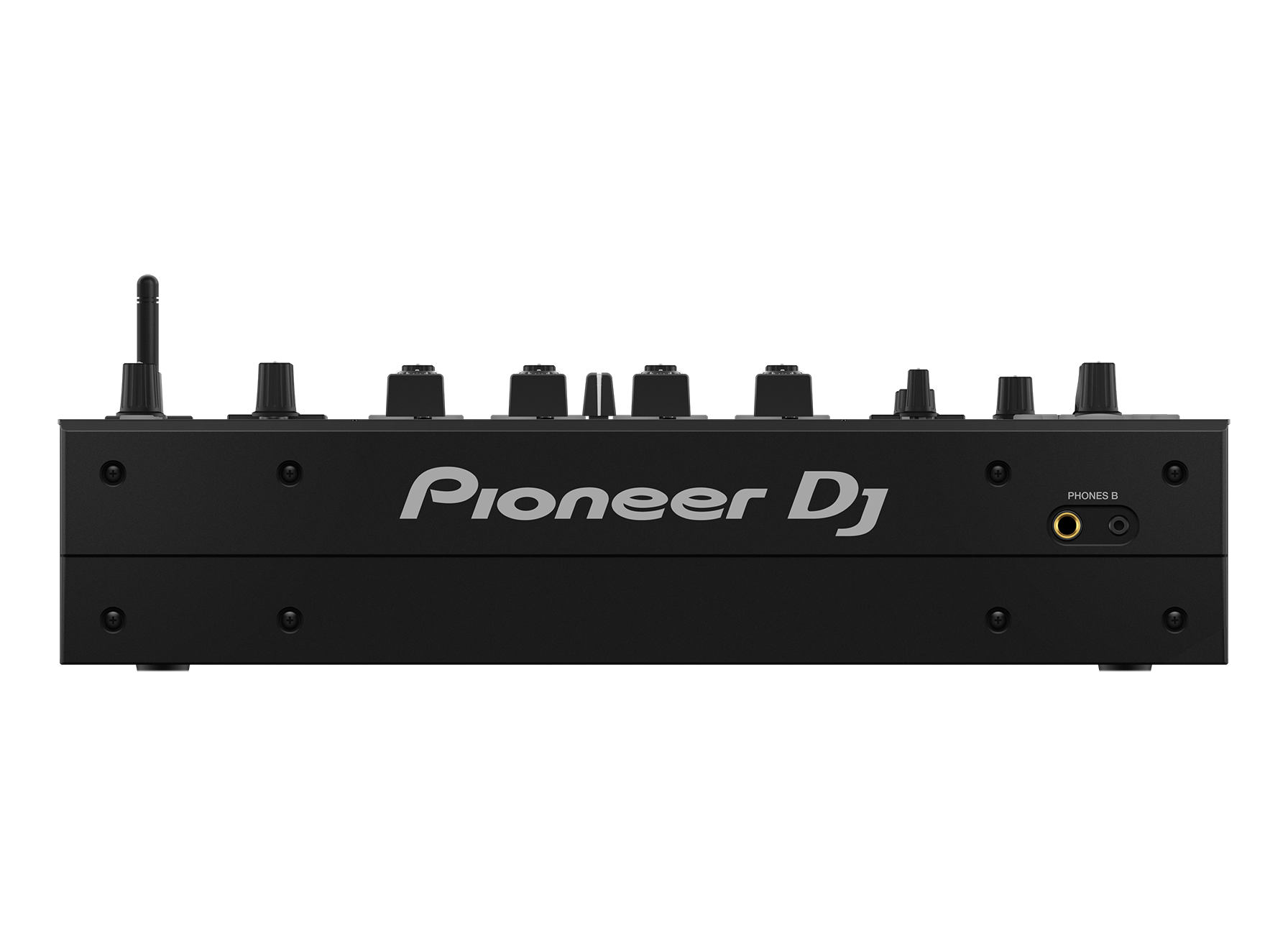

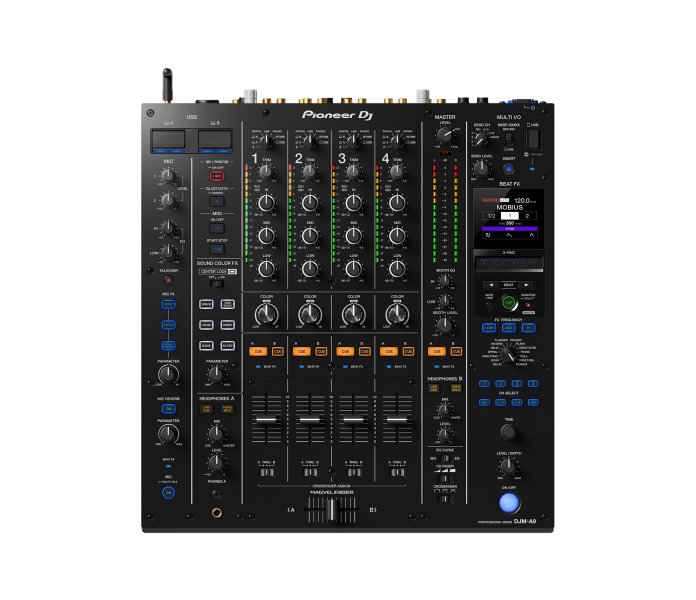

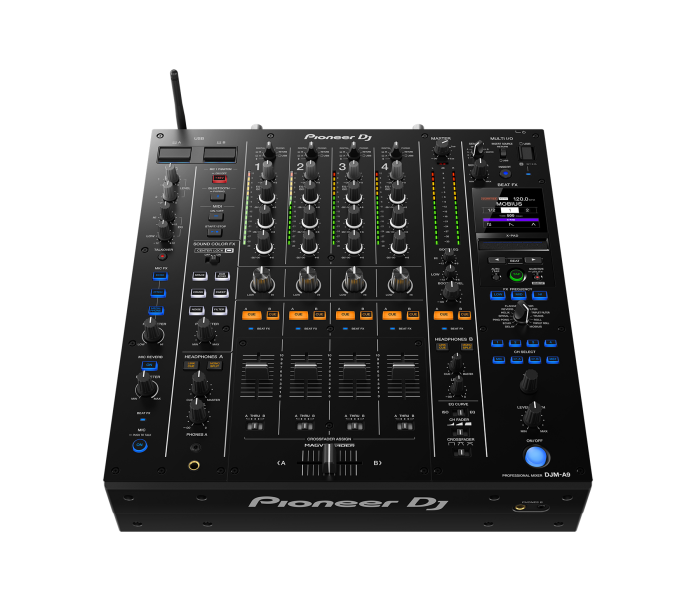

DJM-A9 DJ MIXER
Description
The 4-channel DJM-A9 raises the bar for club standard mixers – boasting huge upgrades compared to its predecessor, the DJM-900NXS2 – with stunningly clear sound quality, enhanced playability and connectivity, and a host of new features to help you take your performances to the next level. The DJM-A9 has also been improved as a musical instrument for more emotional and dynamic performances, while retaining the functions and layout that have become club standards.
Specifications
Specifications
Dimensions (W x D x H)
407.4 x 107.9 x 458.3 mm
407.4 x 140.7 x 458.3 mm (when the wireless antenna stands upright)
Sampling Rate
96 kHz
Weight
10.2 kg
CH input A/D Converter
32 bit
MASTER, BOOTH, REC, SEND D/A Converter
32 bit
S/N Ratio Line
105 dB
S/N Ratio Phono
88 dB
S/N Ratio Mic
79 dB
Distortion
0.005 % (LINE)
Channels
EQ/ISO
3 band
EQ Range
Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB dB
Performance Control
Channels
4
MULTI I/O
USB (Type A)
Sound Color FX
Space
Dub Echo
Sweep
Noise
Crush
Filter
Beat FX
Delay
Echo
Ping Pong
Spiral
Helix
Reverb
Flanger
Phaser
Filter
Triplet Filter
Trans
Roll
Triplet Roll
Mobius
Screen Display
Yes
X-PAD
Yes
rekordbox Quantize
Yes
Crossfader
Crossfader Type
Magvel Fader
Curve Assignable
Yes
Fader Curve
3
Mic
Phantom power
Yes
Microphone Effects
Echo
Pitch
Megaphone
Reverb
Push-to-talk function
Yes
Mic Connection
XLR / 1/4-inch Combo Jack
1/4-inch TRS Jack
Mic EQ
2 band
Mic EQ Range
-12 dB ~ +12 dB
Talkover
Dedicated button
Talkover Attenuator
Yes

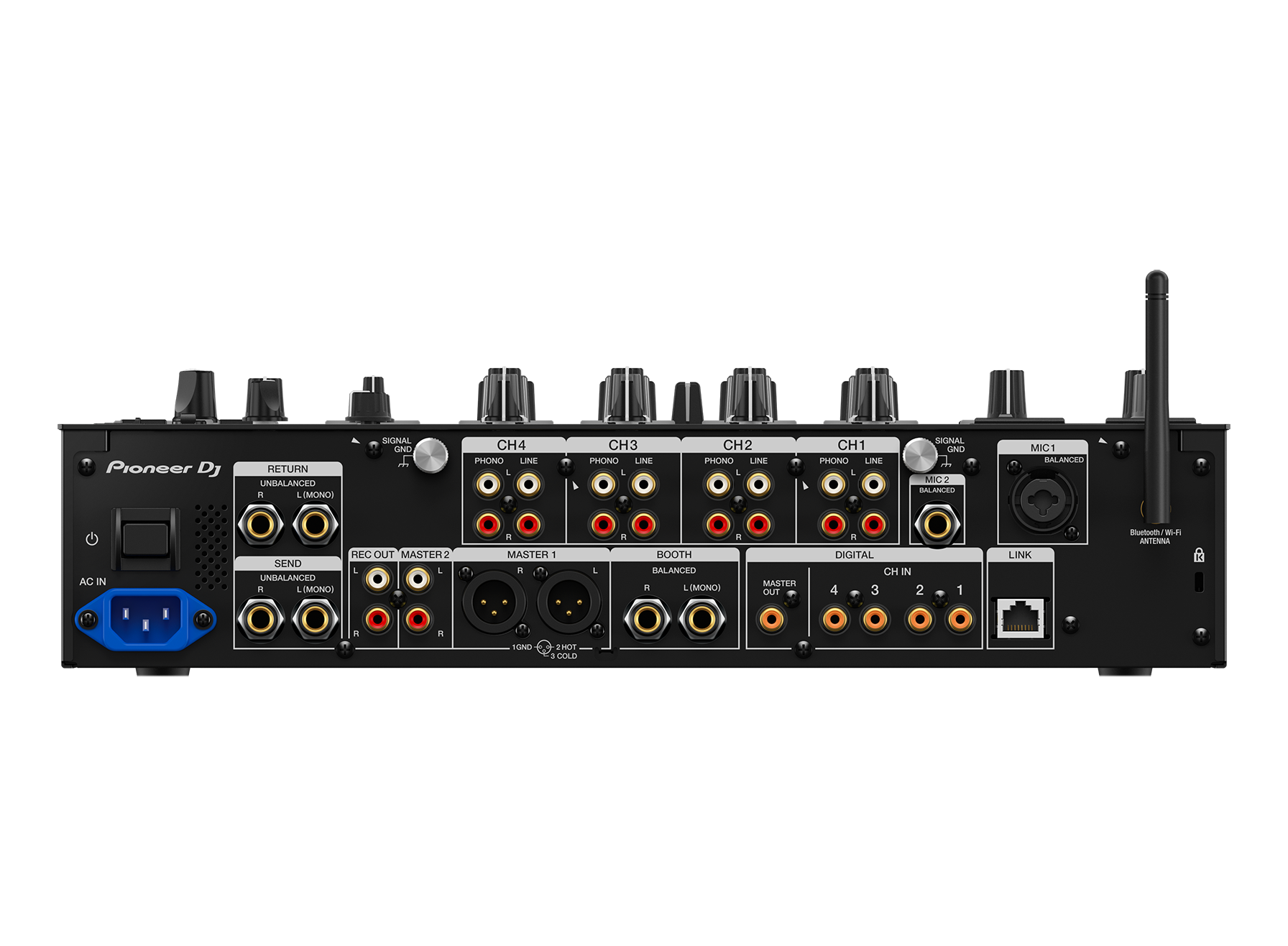

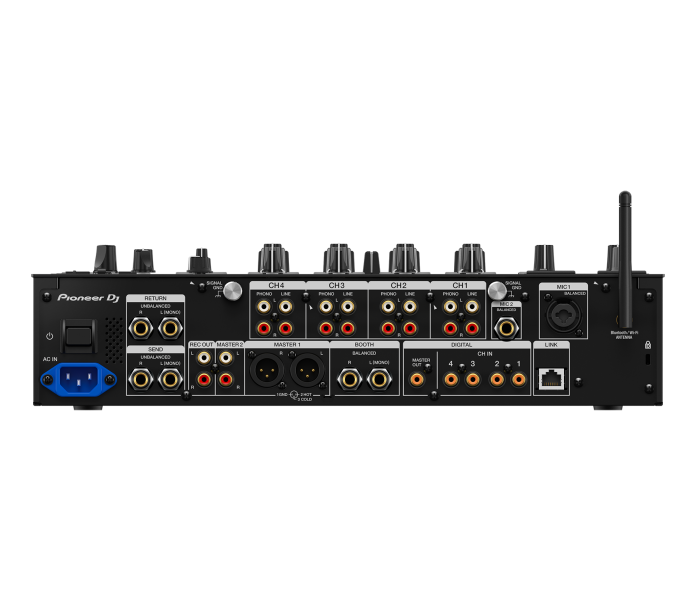

Terminals
Inputs
4 DIGITAL (Coaxial)
4 LINE (RCA)
4 PHONO (RCA)
Send/Return
1 SEND (1/4-inch TS jack)
1 RETURN (1/4-inch TS jack)
LAN
1
Outputs
1 MASTER (XLR, RCA)
1 BOOTH (1/4 inch TRS Jack)
2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
1 REC OUT (RCA)
1 DIGITAL (Coaxial)
USB
1 USB A port
2 USB B ports
2 USB C ports
