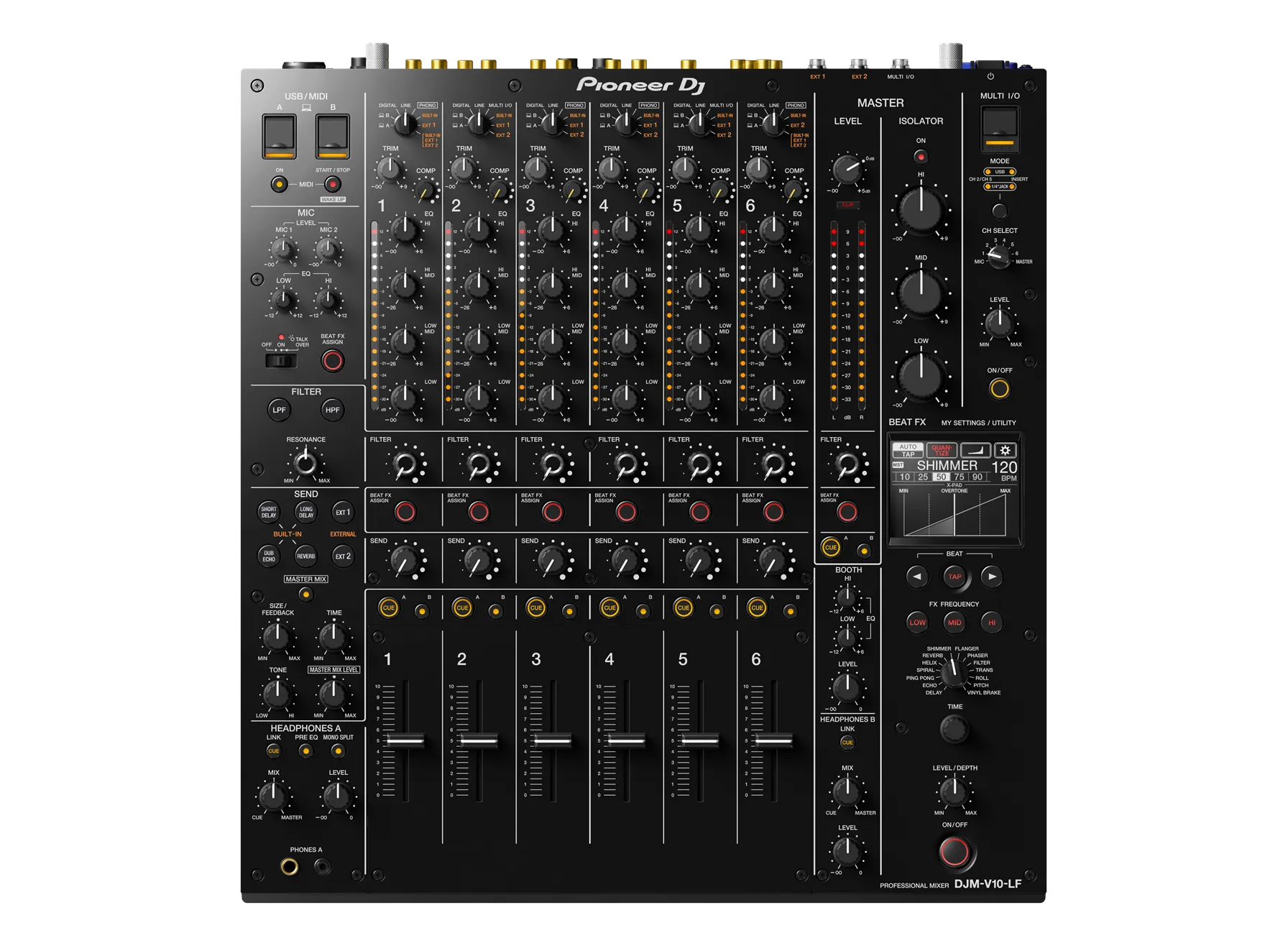

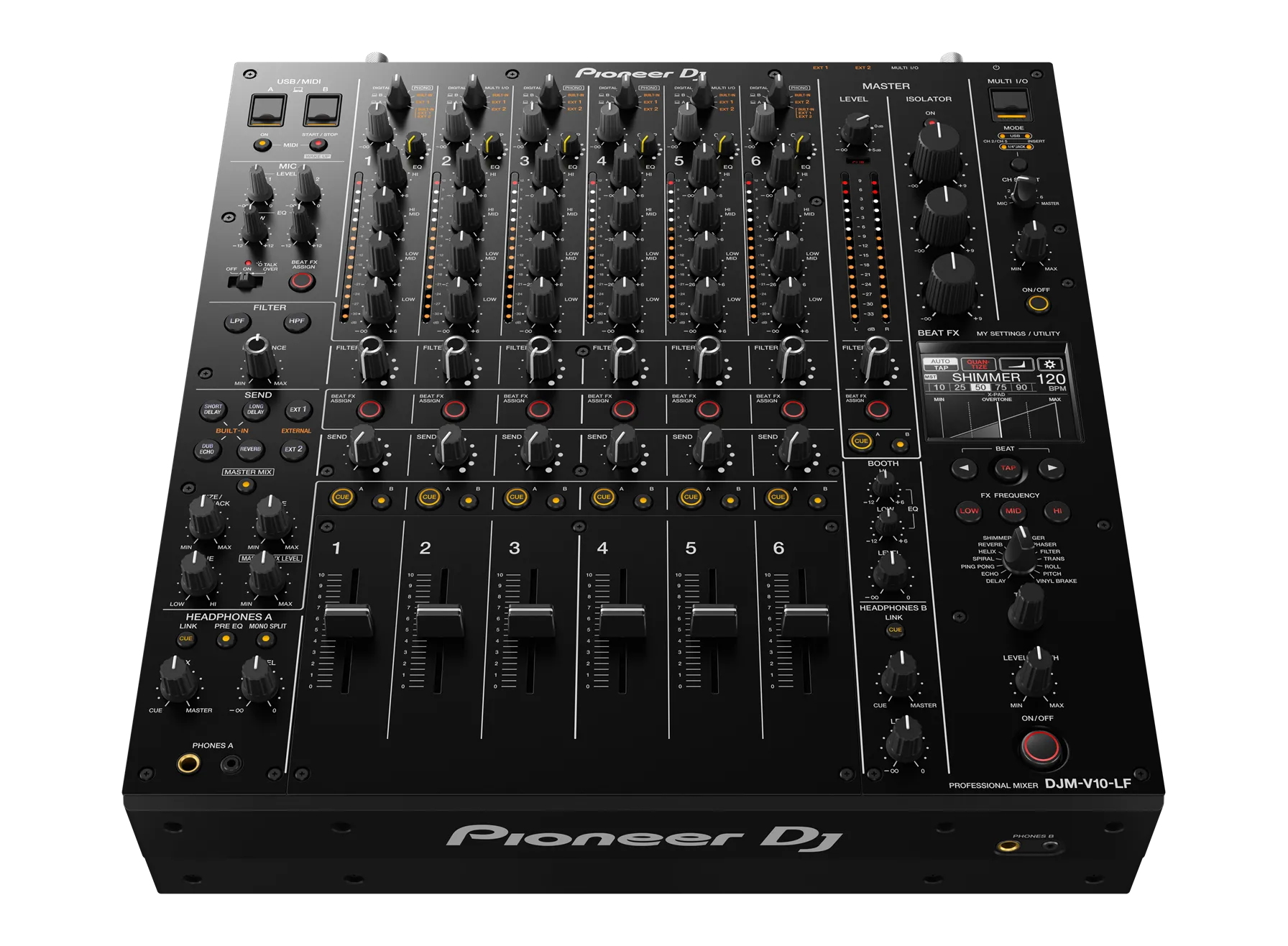

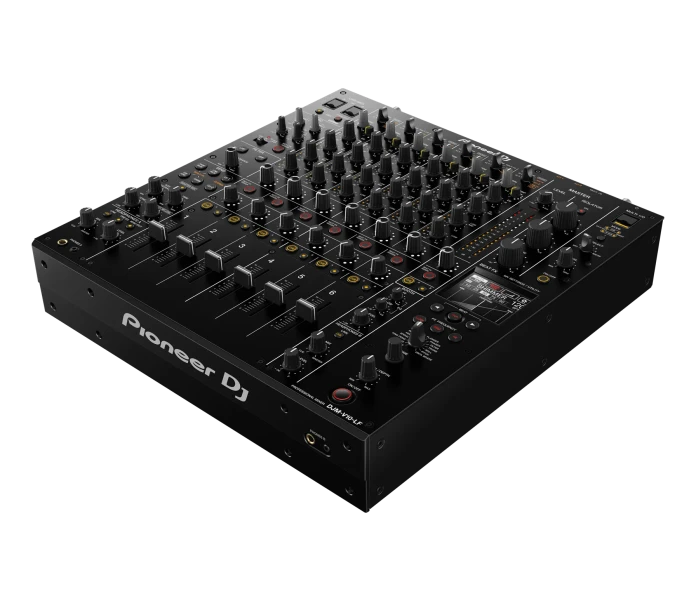

Pioneer DJ - DJM-V10-LF mixer

EAN: 4573201242112
DJM-V10-LF
Pioneer DJ mixer
Read more
Description
Specifications

Description

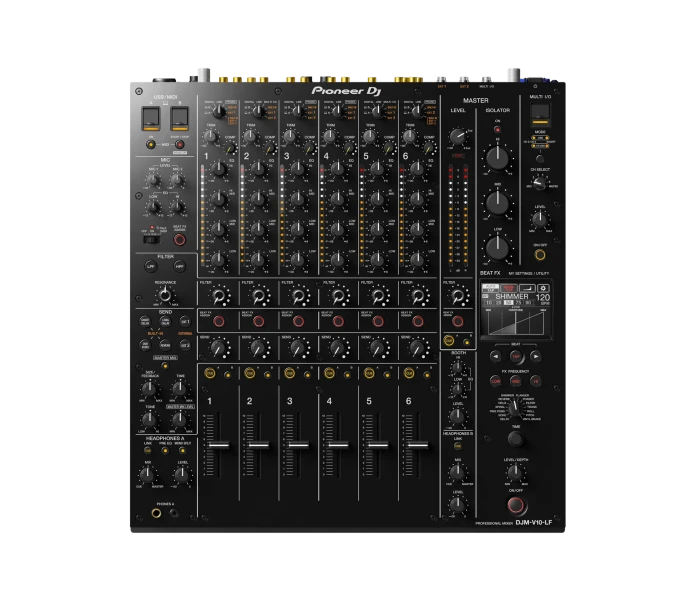

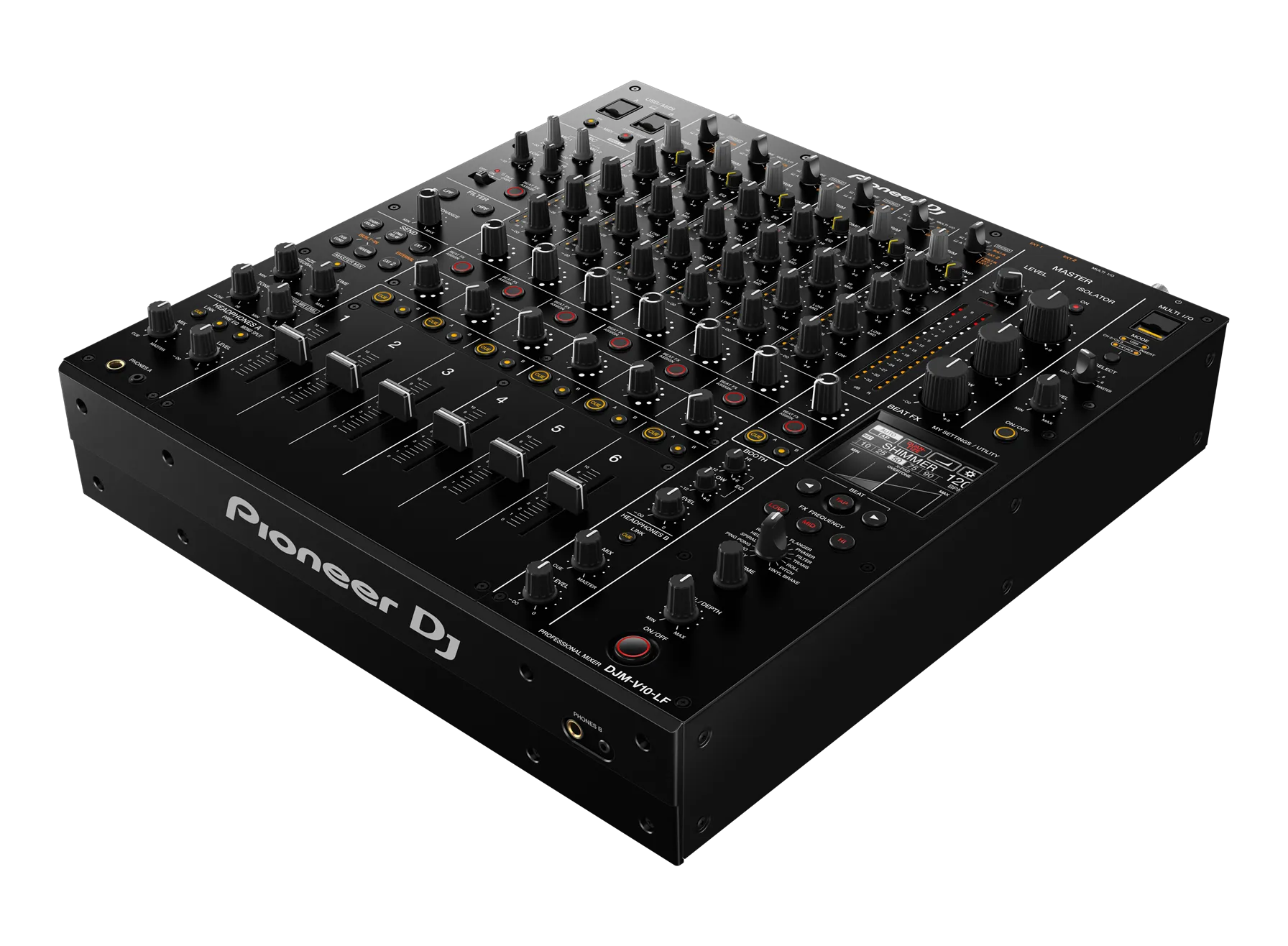

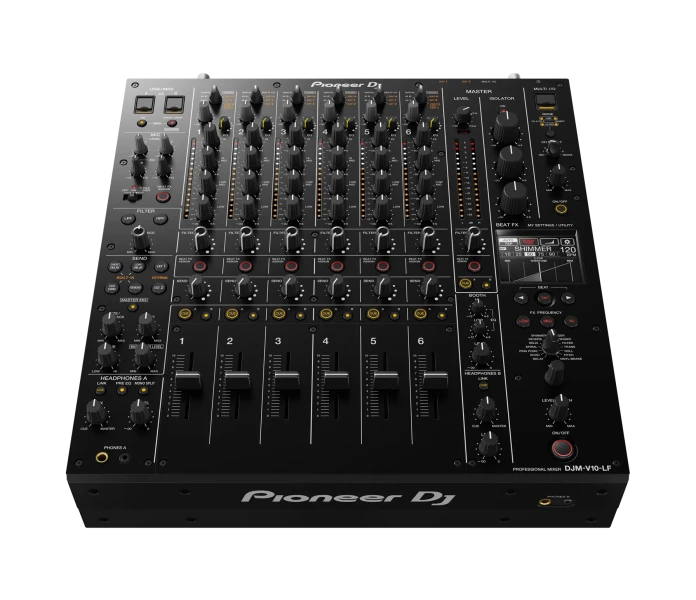

Creative style 6-channel professional DJ mixer with long fader
Craft your sound
The DJM-V10-LF features new, longer channel faders with optimized curves and a new custom-designed curve preset to enable you to perform smooth and accurate mixes. The 60 mm shaft slide faders enable you to control the volume of the audio source from each channel precisely.

Specifications

MIDI Control
Full assignable MIDI controls
DVS Control
rekordbox
Serato DJ Pro
TRAKTOR PRO 3
What′s in the Box
DJM-V10-LF
Power Cord
Warranty (for some regions)
Quick Start Guide
Precautions for Use
Specifications
Frequency Range
20 - 40000 Hz
Sampling Rate
96 kHz
Width
437.6 mm
Height
107.9 mm
Depth
467 mm
Weight
11.9 kg
A/D Converter
32 bit
D/A Converter
32 bit
S/N Ratio Line
105 dB
S/N Ratio Phono
88 dB
S/N Ratio Mic
79 dB
Distortion
0.005 % (LINE)
Channels
EQ
4 band
EQ Range
[Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
Performance Control
Channels
6
Filter
HPF
LPF
SEND
Short Delay
Long Delay
Dub Echo
Reverb
2 Externals (1/4-inch TS jack)
MULTI I/O
1/4-inch jack
USB (Type A)
Beat FX
Delay
Echo
Ping Pong
Spiral
Helix
Reverb
Shimmer
Flanger
Phaser
Filter
Trans
Roll
Pitch
Vinyl Brake
Mic
Mic Connection
XLR / 1/4-inch Combo Jack
1/4-inch TRS Jack
Talkover
3 Position Switch

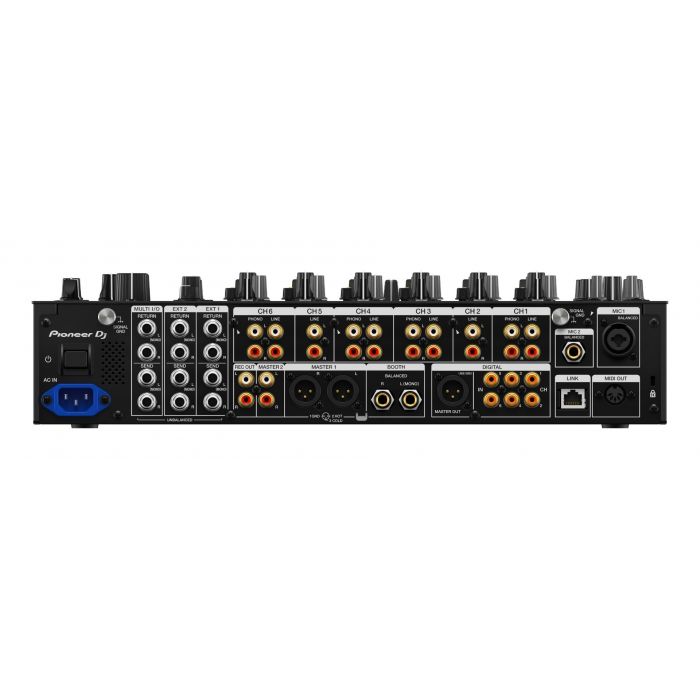

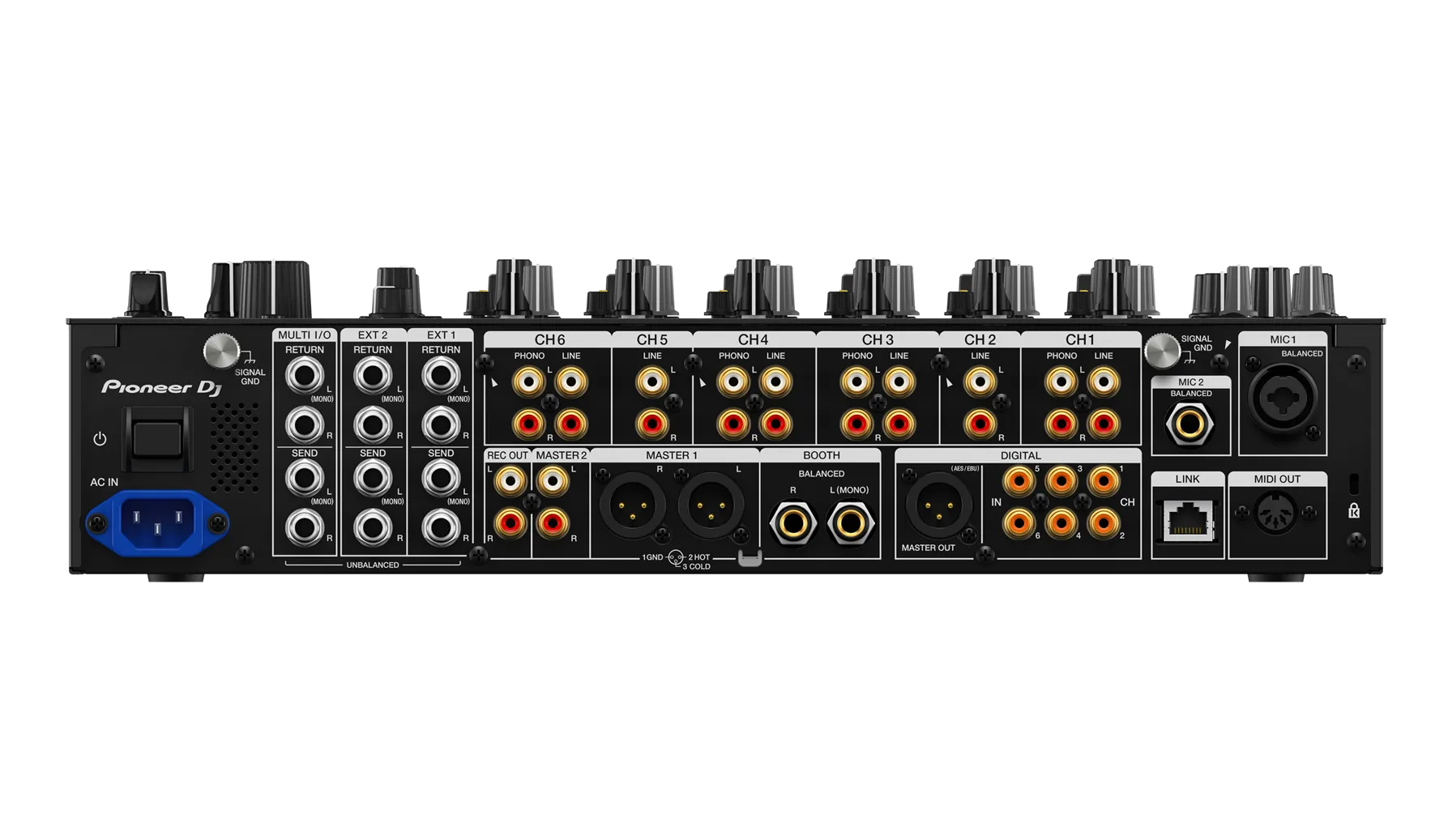

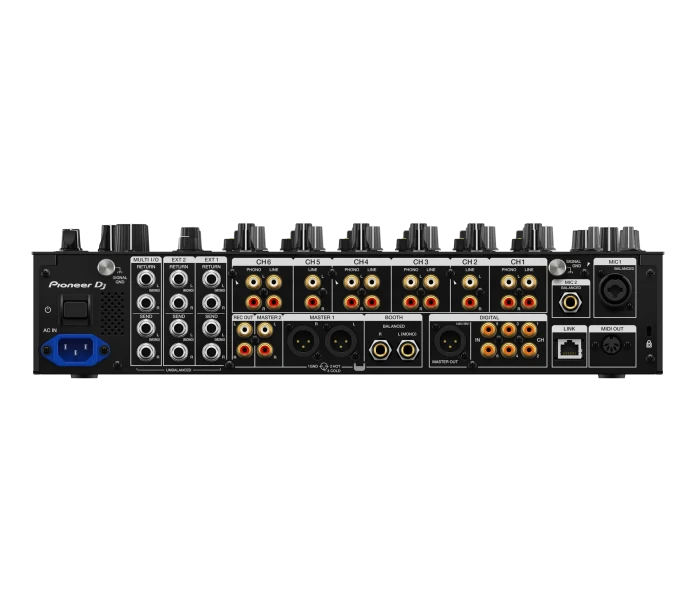

Terminals
Inputs
6 DIGITAL (Coaxial)
6 LINE (RCA)
4 PHONO (RCA)
Send/Return
3 SEND (1/4-inch TS jack)
3 RETURN (1/4-inch TS jack)
LAN
1
Outputs
2 MASTER (XLR, RCA)
1 BOOTH (1/4 inch TRS Jack)
4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
1 REC OUT (RCA)
1 DIGITAL (AES/EBU)
1 MIDI (DIN)
USB
2 USB B ports
1 USB A port.
