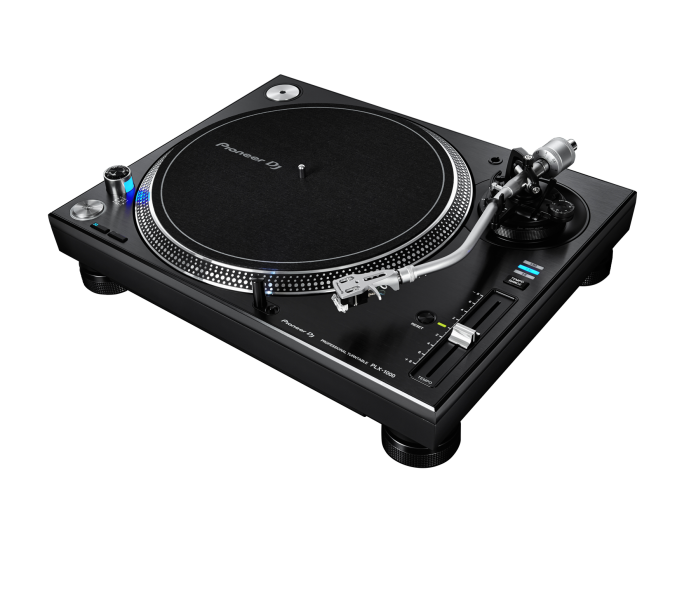

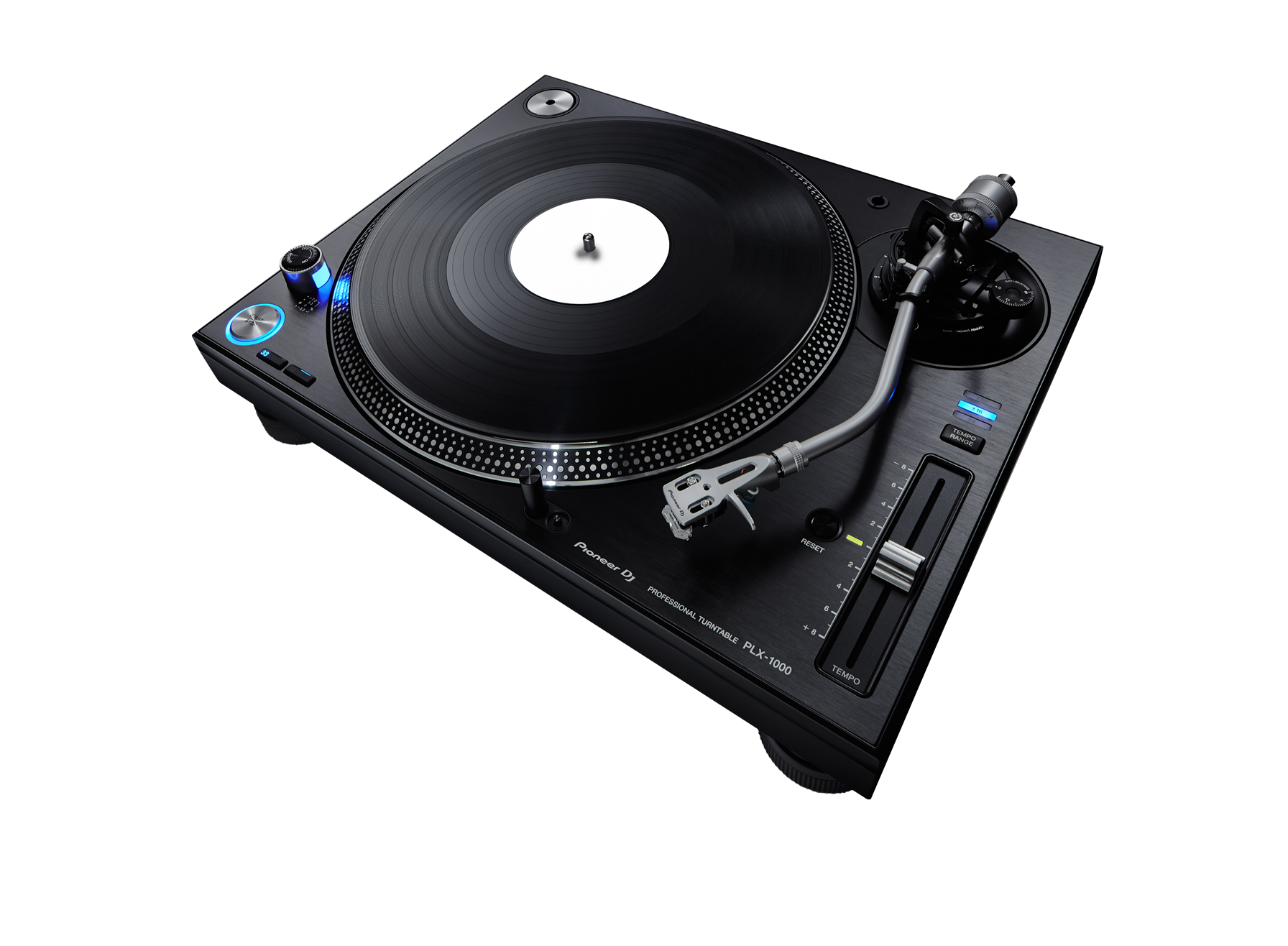

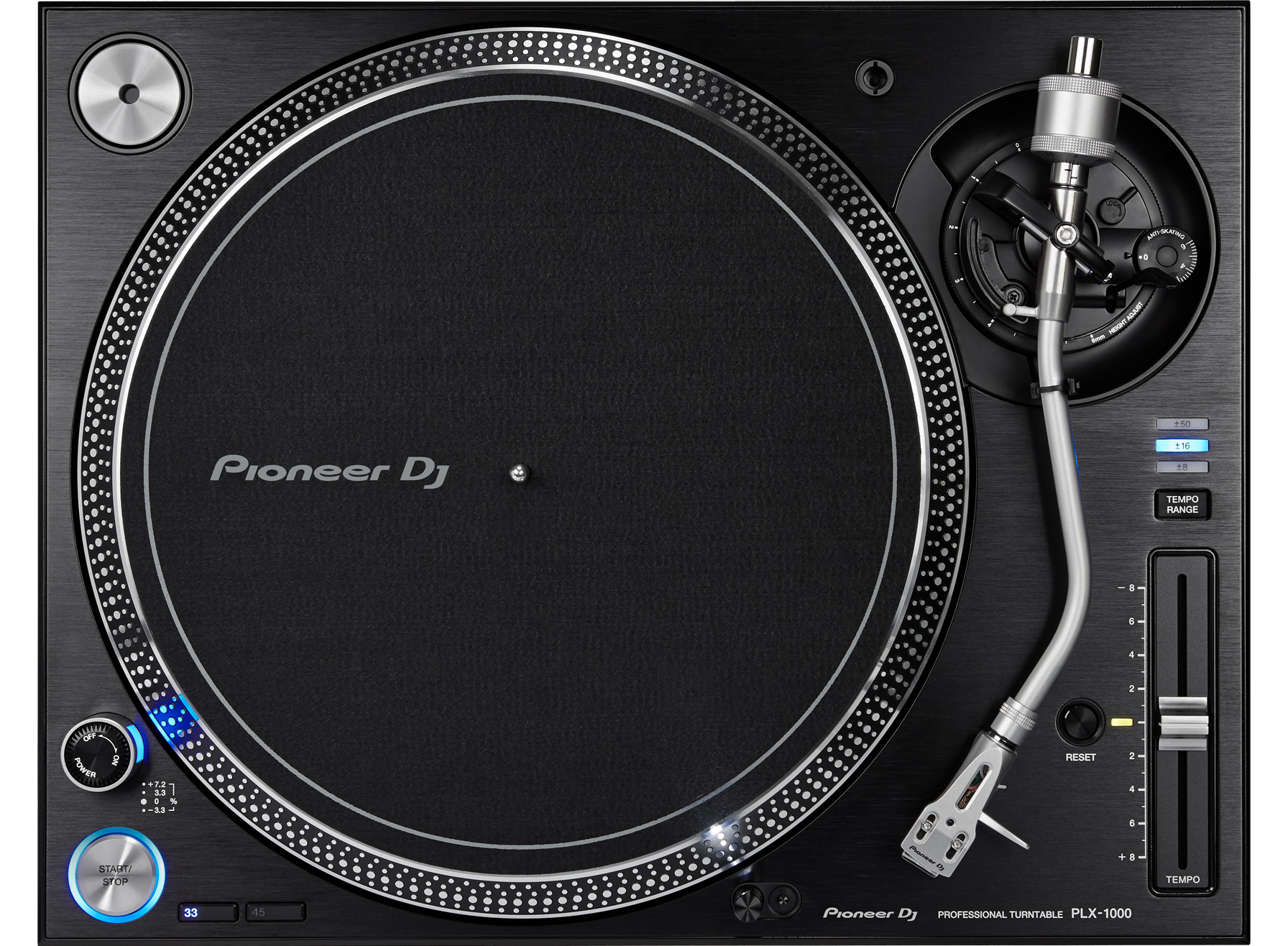

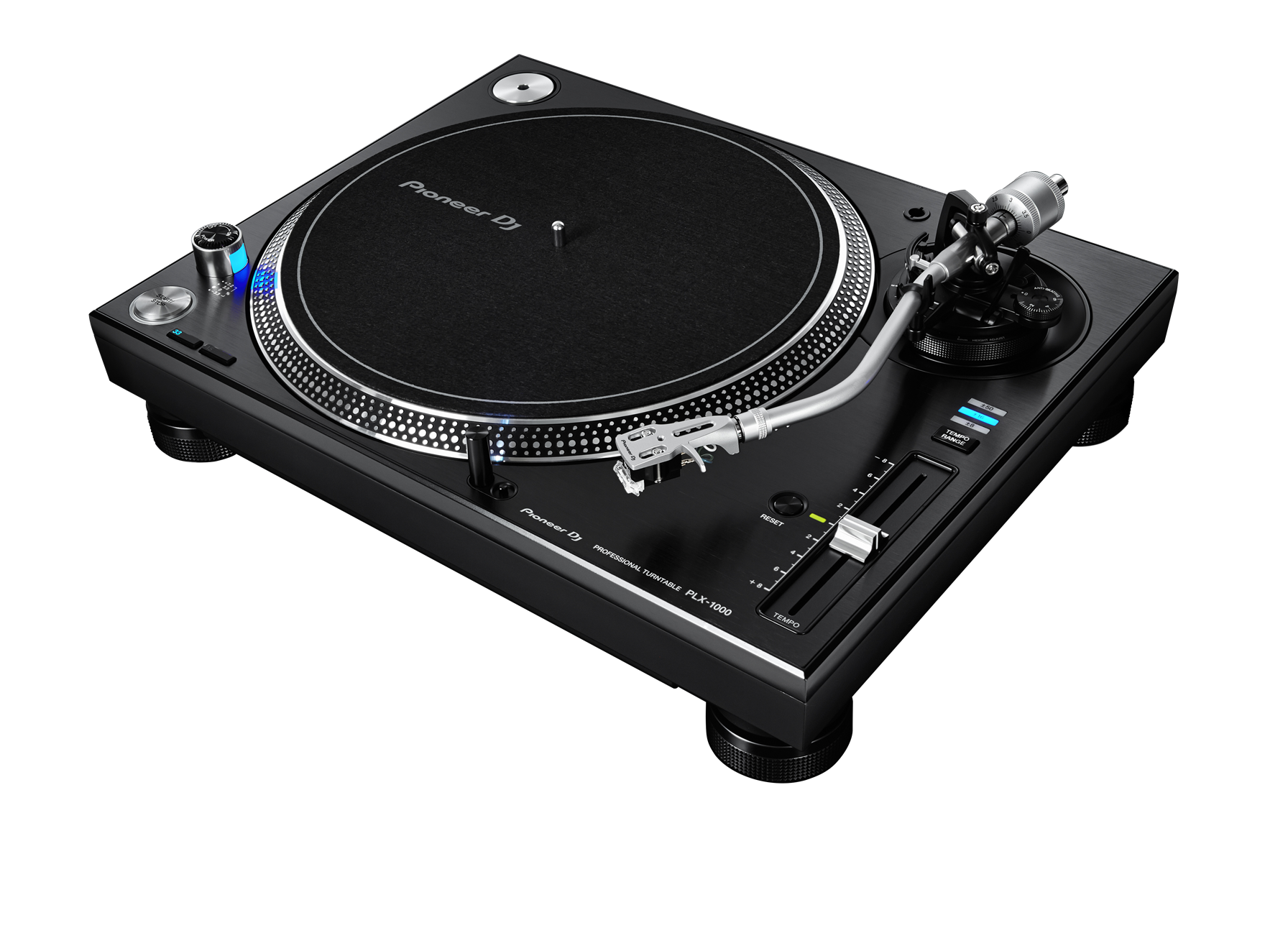

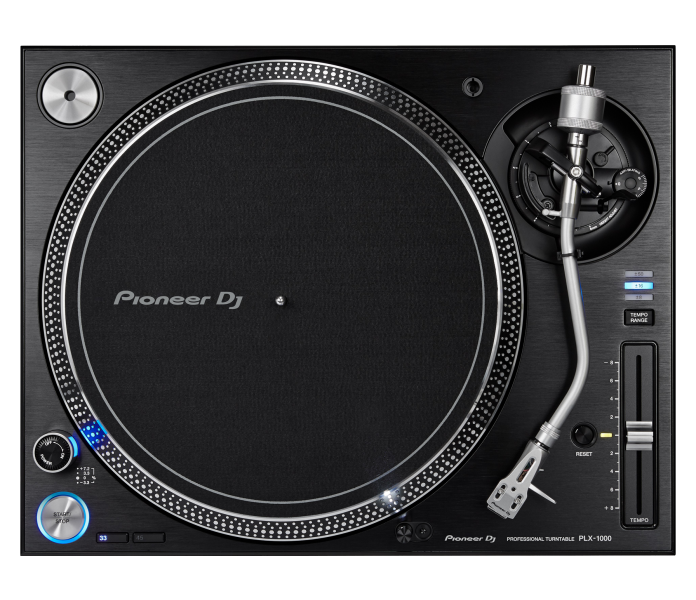

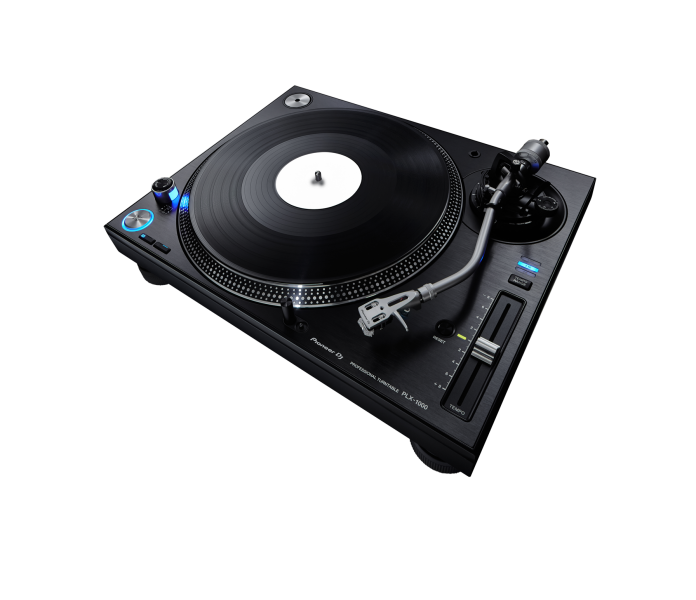

Pioneer DJ PLX-1000 turntable
Description
The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables.
Specifications
What′s in the Box
PLX-1000
Power cord
Audio cable
Ground wire
Adapter for EP record
Turntable sheet
Slip mat and sheet
Dust cover
Head shell
Balance, sub and shell weights
Operating instructions
Specifications
Width
453 mm
Height
159 mm
Depth
353 mm
Weight
14.6 kg
Turntable
Drive Method
Quartz lock, servo-type, direct drive
Platter
Aluminium, die-casting diameter: 332 mm
Motor
3-phase, brushless DC motor
Braking System
Electronic brake
Rotation Speed
33⅓-45 rpm
Rotation Adjustment Range
±8, ±16, ±50 %
Wow and Flutter
0.01 % (Measured by obtaining signal from built-in frequency generator of motor assembly.)
Signal-to-Noise Ratio
70 dB
Starting Torque
4.5 kgf・cm
Start Time
Within 0.3 sec (at 33⅓ rpm)
Tone Arm
Arm Type
Universal type S-shape tone arm
Gimbal-supported type bearing structure
Static balance type
Overhang
15 mm
Effective Length
230 mm
Tracking Error
Within 3°
Height Adjustment Range
6 mm
Stylus Pressure Variable Range
0-4 g (1 scale 0.1 g)
Proper Cartridge Weight
2.5-12 g (includes mounting materials)

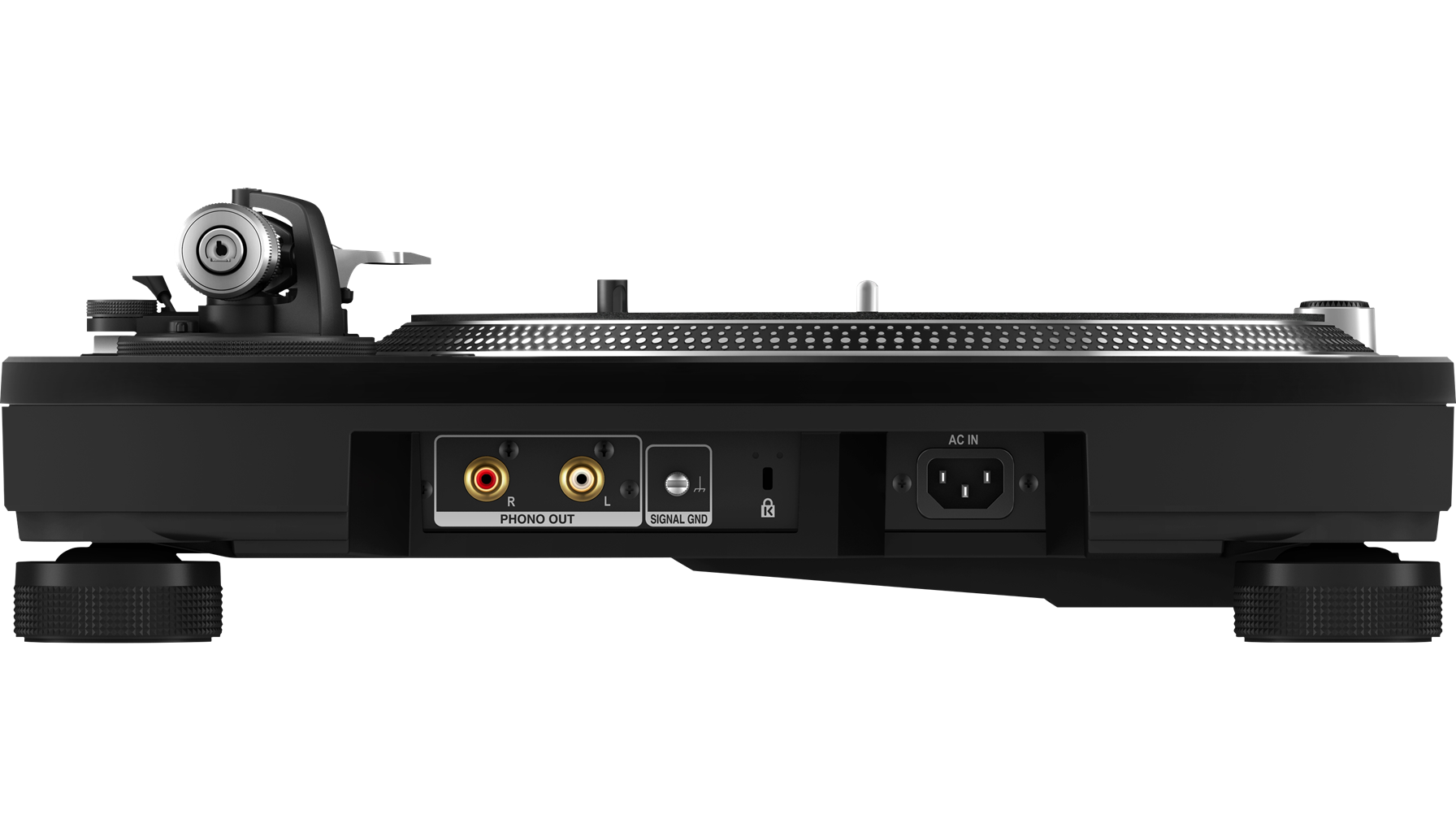

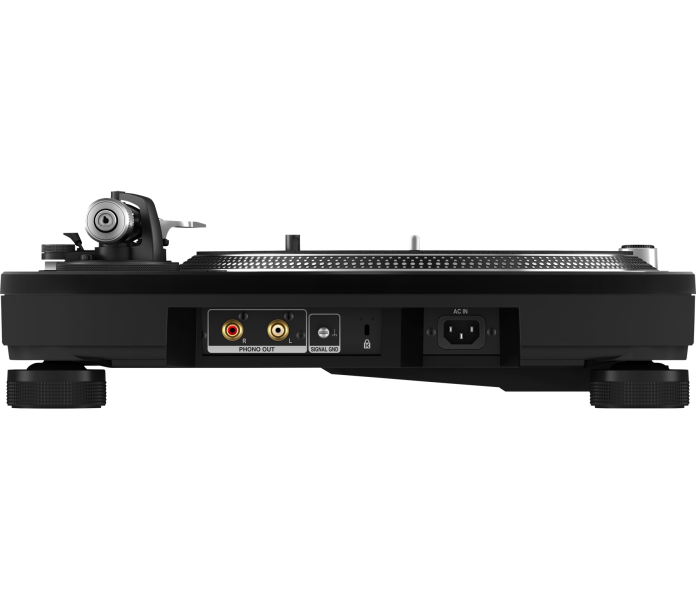

Terminals
Outputs
1 ANALOGUE (RCA).
