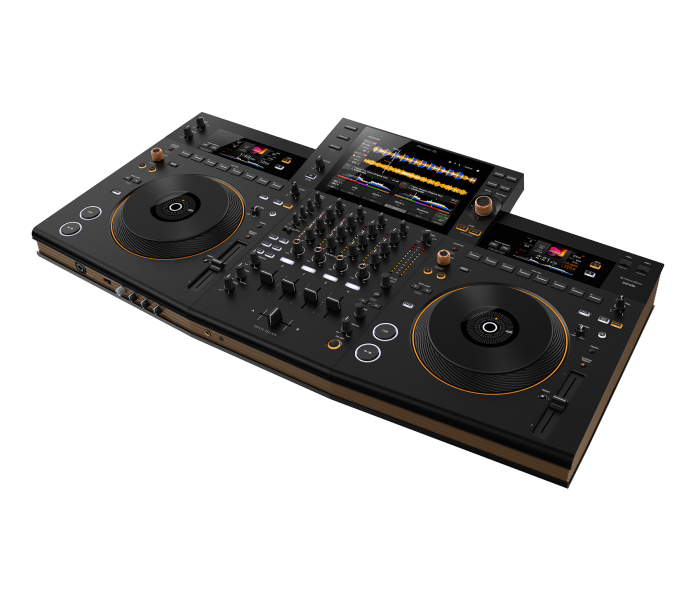

Pioneer OPUS-QUAD All-in-one DJ system
Description
This new professional all-in-one DJ system puts you in control of the music, like the conductor of an orchestra. Creating harmony between beautiful design and musical playability, it includes new and evolved features such as standalone 4-deck playback. All this combines to provide a spectacular DJ experience that you can harness to inspire your audience in any space or location.
The OPUS-QUAD introduces a completely fresh approach to DJ equipment that harmonizes design and playability. Raising the level of elegance in musical direction and the space the music fills, it helps create a special experience for your audience.
The OPUS-QUAD offers standalone 4-deck playback for versatile DJ performances. This means you can play 4 tracks on 4 different decks simultaneously, cue up tracks in advance, or leave a deck free for dropping requests into your set at a moment’s notice – all with just one unit. You can also assign a different color to each deck, which is matched by the jog ring illumination, so you’ll always know which deck you’re playing with.
Specifications
Main Features
Plays
MP3
AAC
WAV
AIFF
Apple Lossless
FLAC
USB Storage Support
FAT16
FAT32
exFAT
HFS+
(NTFS isn’t supported.)
Compatible DJ Software
rekordbox for Mac/Windows: Hardware Unlock
rekordbox for iOS/Android (coming April 2023)
Serato DJ Pro: Hardware Unlock (coming summer 2023)
MIDI Control
Yes
USB record
Yes
Plug and Play
Yes
Auto Standby
Yes
What′s in the box
OPUS-QUAD
Power cord
Quick Start Guide
Precautions for Use
Warranty (Only products in Europe. Products in North America and Japan include warranty information in the “Precautions for Use”)
Specifications
Sampling Rate
44.1 kHz
Frequency Range
20 - 20000 Hz
Width
36.44 in
Height
5.59 in
Depth
19.67 in
Weight
29.1 lb
Dimensional Outline drawing
Click here for the details.
Power Supply
AC 100-240 V, 50 Hz / 60Hz
Power Consumption
60 W
MASTER DA converter
32 bit
A/D Converter
24 bit
Signal-to-Noise Ratio
USB: 114 dB
LINE: 96 dB
PHONO: 85 dB
MIC: 79 dB
Distortion
USB: 0.003 %
LINE: 0.005 %
Performance Control
Channels
4
Deck Control
4 (USB storage device)
4 (DJ Software control)
Jog Wheel
206 mm
Jog Feeling
Yes
Sound Color FX
Space
Dub Echo
Sweep
Noise
Crush
Filter
Beat FX
Delay
Echo
Ping Pong
Spiral
Reverb
Trans
Filter
Flanger
Phaser
Pitch
Slip Roll
Roll
Vinyl Brake
Helix
Hot Cues
8 per deck
Beat Loop
Yes
Auto Beat Loop
Yes
Beat Sync
Yes
Quantize
Yes
WaveZoom
Yes
Manual Loop
Yes
Trim knob
Yes
EQ Isolator
Yes
Mic
Mic Connection
XLR connector & 1/4 inch TRS jack
Mic EQ
3 band
Talkover
MIC OFF/ON/TALK OVER slide SW

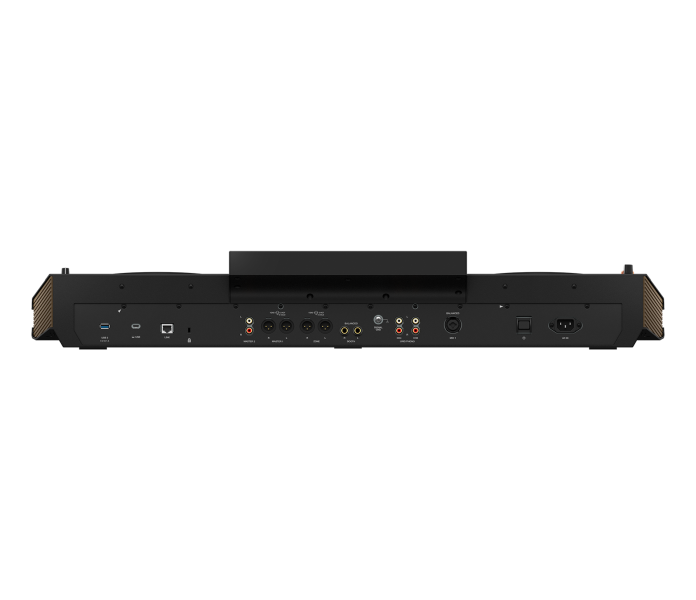

Terminals
Inputs
2 LINE (RCA)
2 PHONO (RCA)
2 MIC (XLR connector & 1/4 inch TRS jack)
Outputs
1 MASTER (XLR)
1 MASTER (RCA)
1 ZONE (XLR)
1 BOOTH (1/4 inch TRS Jack)
1 PHONES (1/4 inch stereo phone Jack)
1 PHONES (3.5-mm stereo mini jack)
USB
3 USB A ports
1 USB C port
Wireless LAN
Supported standards
IEEE 802.11 a / b / g / n / ac
Frequency band used
2.4 GHz / 5 GHz
Bluetooth
Wireless system
Bluetooth ver. 4.2
Maximum transmission distance
Approximately 20 m in unobstructed circumstances.
(Transmission distances are a guideline. Transmission distance may change depending on the surrounding environment.)
Modulation method
FH-SS (Frequency Hopping Spread Spectrum)
Compatible codecs
SBC, AAC
