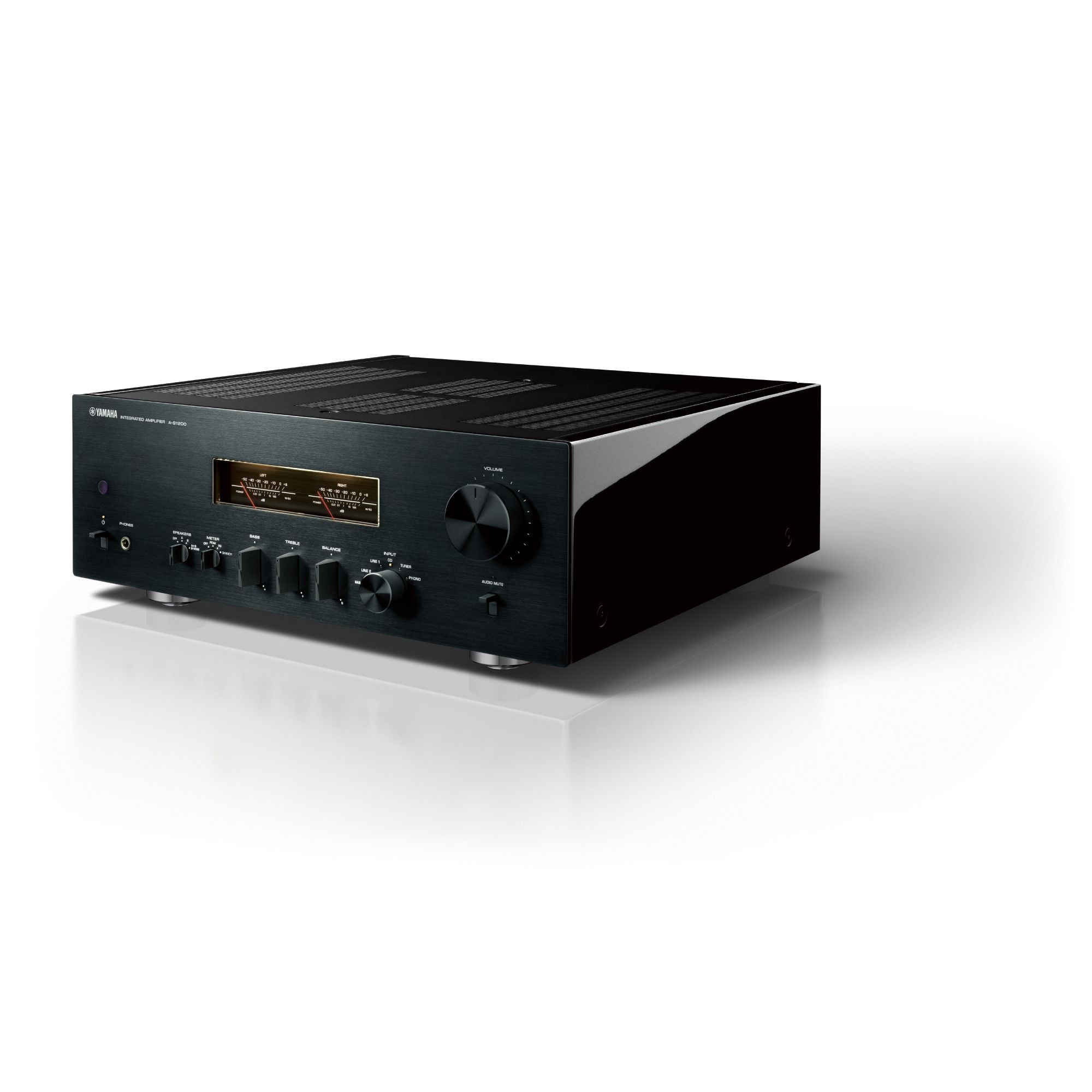

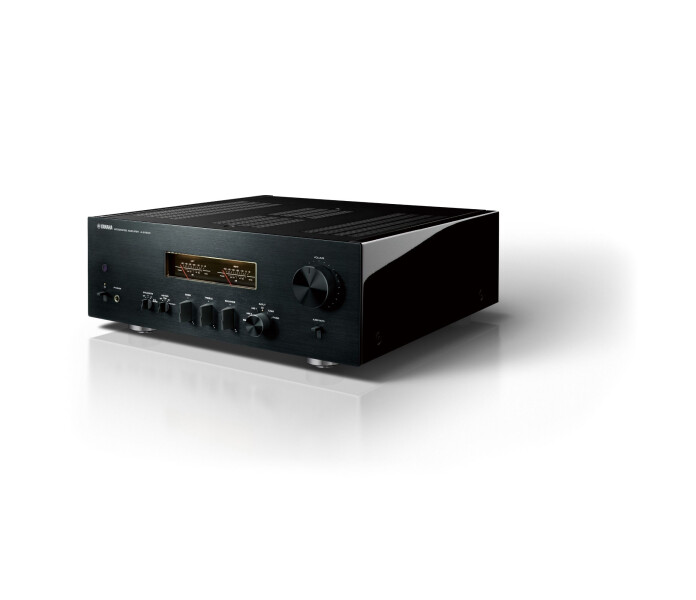

Yamaha A-S1200 amplifier (black)
Description
Acknowledging the golden era of Hi-Fi with the level meters and beautiful design, the A-S1200 boasts an impressive array of the latest technology to accurately deliver an emotional, purely musical sound. High Quality Components delivering exceptional musical expression Toroidal power transformer with enormous energy for a pure musical sound Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era Floating Balanced Power Amplifier Mechanical ground concept maximises rigidity for expressive and rhythmic bass
Specifications
Rated Output Power[20 Hz-20 kHz, 0.07% THD] 90 W ＋ 90 W (8 ohms), 150 W ＋ 150 W (4 ohms)
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)160 W + 160 W
High Dynamic Power/Channel (8/6/4/2 ohms)105/135/190/220 W
Damping Factor≧ 250 (1 kHz, 8 ohms)
Frequency Response+0 / -3 dB (5Hz-100kHz) , ＋0 / -0.3 dB(20 Hz-20 kHz)
RIAA Equalization Deviation＋/-0.5 dB (PHONO (MM/MC))
Dimensions (W x H x D)435×157×463 mm 17-1/8″ x 6-1/8″ x 18-1/4″
Weight22.0 kg 48.5 lbs
Receiver / Integrated Amplifier
Total Harmonic Distortion (20Hz to 20kHz)[Input 0.5 V] PHONO MC→LINE2 OUT: 0.02% (1.2 mVrms), PHONO→LINE2 OUT: 0.005% (1.2 Vrms), CD, etc.→SP OUT: 0.035% (50 W/8 ohms）
Signal-to-Noise RatioPHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB
Input Sensitivity[1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms

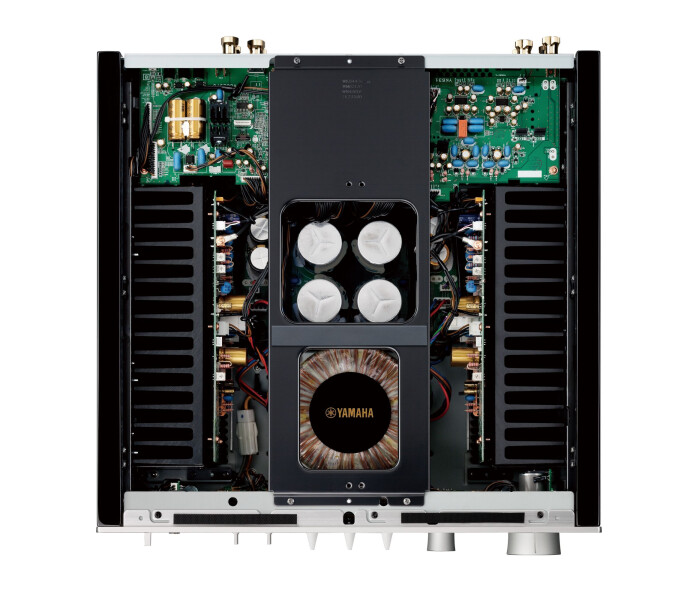

Transformer625VA (Toroidal).
