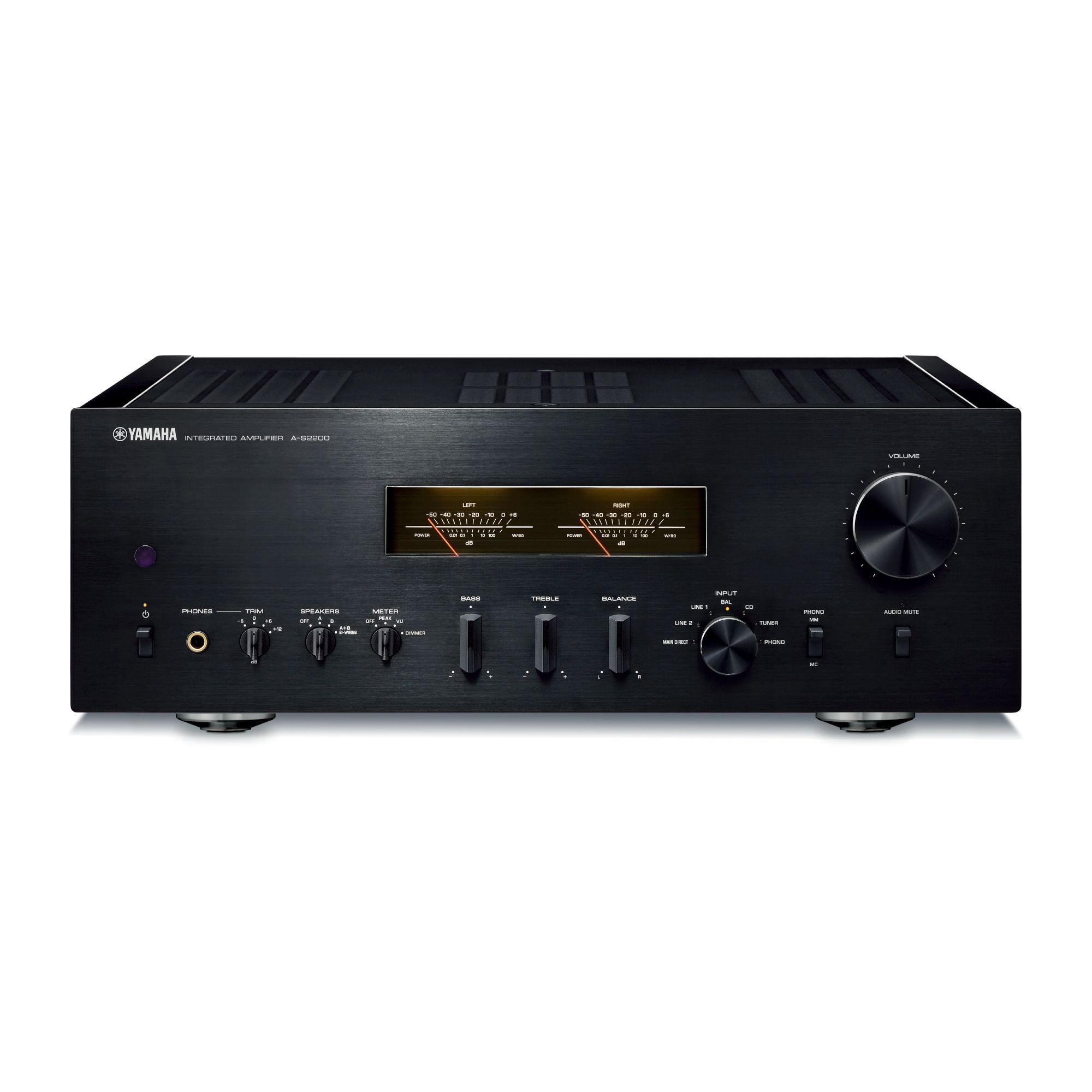

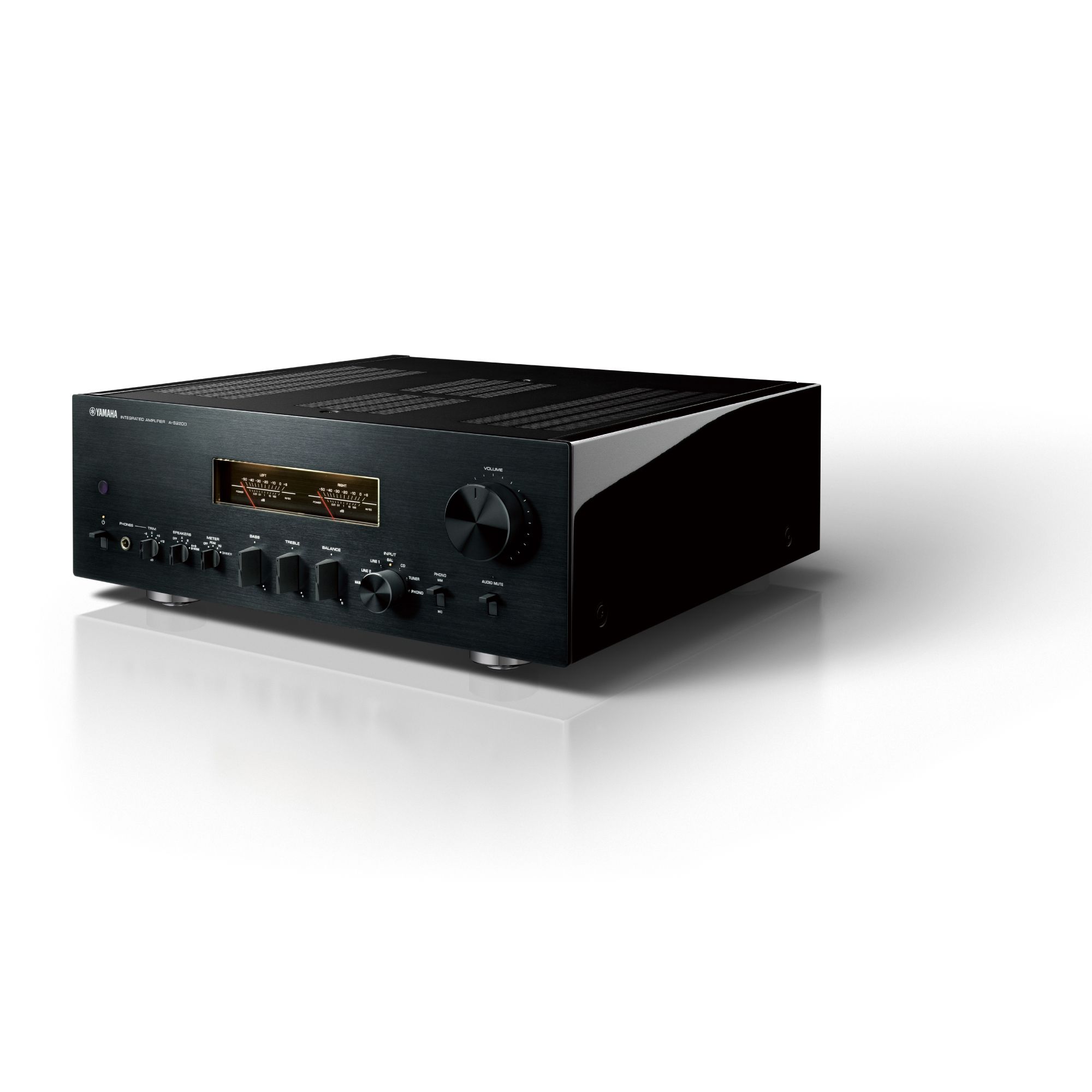

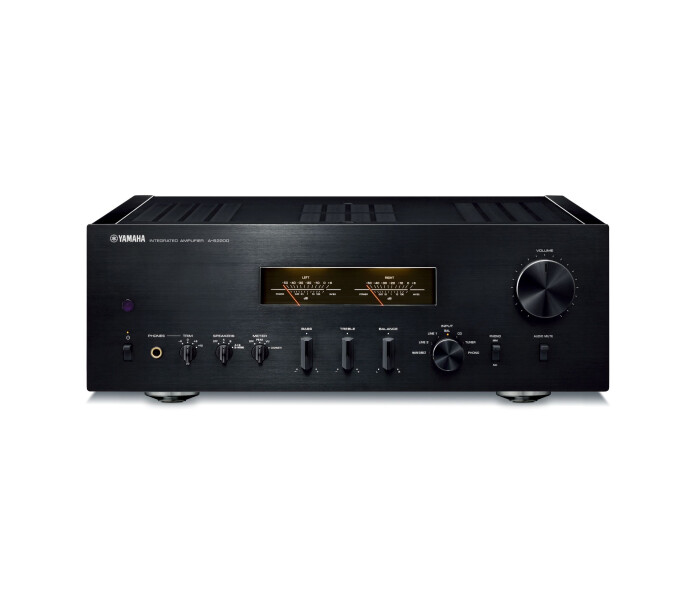

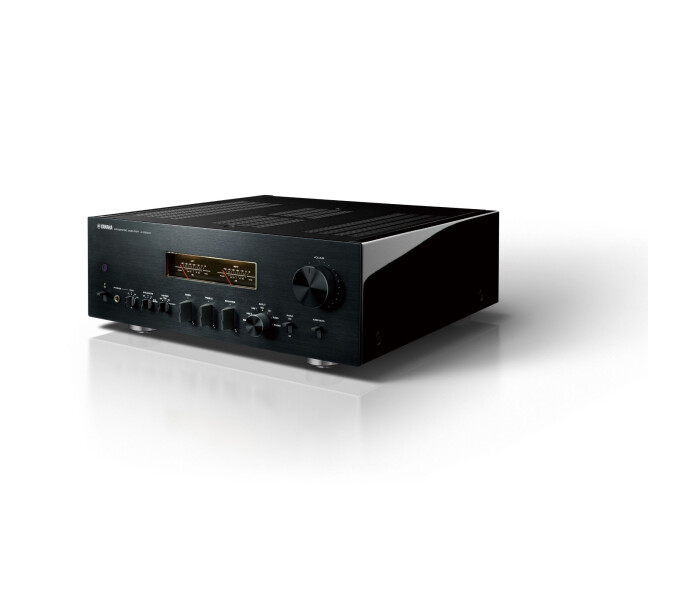

Yamaha A-S2200 HiFi stereo amplifier (black/piano black)
Description
A performance fit for the global stage and inheriting many features from its big brother, the A-S2200 delivers an authentic, powerful yet somehow elegant and emotional Hi-Fi sound. Absolute musicality from a luxuriously beautiful instrument.
Fully balanced circuit design from input to speaker out

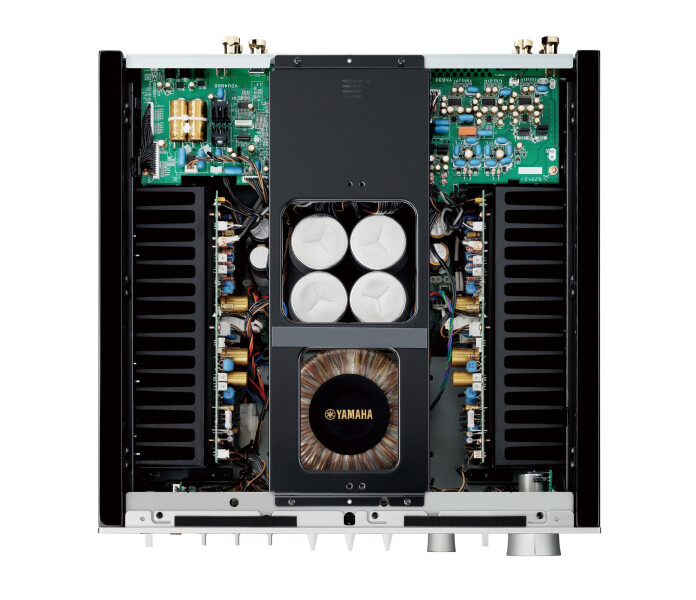

Large toroidal power transformer with enormous energy delivering an authentic Hi-Fi sound
Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
Thick wires for ground connection contribute to low impedance design for a wide and open sound stage
Mechanical ground concept maximises rigidity for expressive and rhythmic bass
Specifications
Rated Output Power[20 Hz-20 kHz, 0.07% THD] 90 W ＋ 90 W (8 ohms), 150 W ＋ 150 W (4 ohms)
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)160 W + 160 W
High Dynamic Power/Channel (8/6/4/2 ohms)105/135/190/220 W
Damping Factor≧ 250 (1 kHz, 8 ohms)
Frequency Response+0 / -3 dB (5 Hz-100 kHz) , ＋0 / -0.3 dB(20 Hz-20 kHz)
RIAA Equalization Deviation＋/-0.5 dB (PHONO (MM/MC))
Dimensions (W x H x D)435×157×463 mm 17-1/8″ x 6-1/8″ x 18-1/4″
Weight22.7 kg 50.0 lbs
Receiver / Integrated Amplifier
Total Harmonic Distortion (20Hz to 20kHz)[Input 0.5 V]
PHONO MC→LINE2 OUT: 0.02 % (1.2 mVrms), PHONO→LINE2 OUT: 0.005 % (1.2 Vrms), CD, etc./BAL→SP OUT: 0.035 % (50 W/8 ohms）
Signal-to-Noise RatioPHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL: 114 dB
Input Sensitivity[1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL: 200 mVrms/100 kohms
Transformer625VA (Toroidal).
