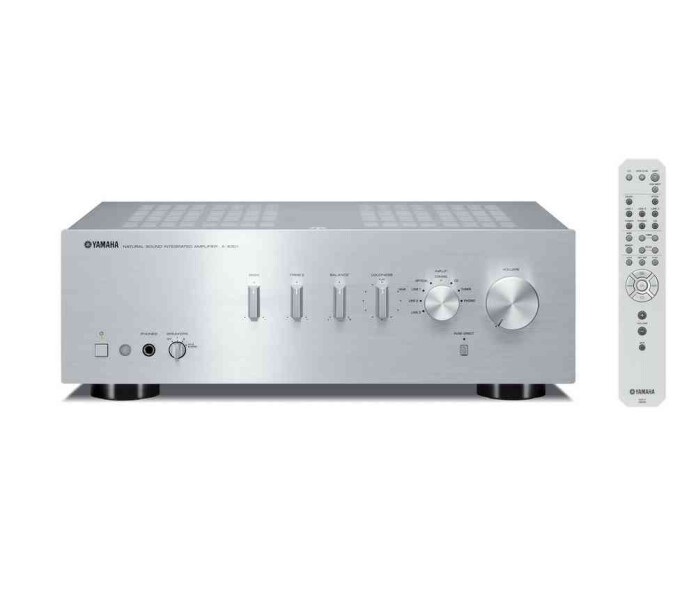

Yamaha A-S301 amplifier (Silver)
Description
Designed for excellent sound quality, with a beautiful appearance. An integrated amplifier with the advantage of digital inputs.
60 W x 2-ch (20 Hz - 20 kHz)
Digital audio inputs for TV or Blu-ray™ player
Pure Direct mode for greater sound purity
ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
I/O (input to output) direct symmetrical design
ART (Anti-Resonance and Tough) Base
Custom-made power transformer / 6,800uF block capacitors / extruded aluminum heat sinks
Simple yet sophisticated design (aluminum front panel)
Continuously variable loudness control
Specifications
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)60 W + 60 W (0.019% THD)
High Dynamic Power/Channel (8/6/4/2 ohms)100 / 120 / 140 / 150 W
Frequency Response10 Hz - 100 kHz +/- 1.0 dB
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)0.019% (50 W / 8 ohms)
Signal-to-Noise Ratio (CD)99 dB (input shorted, 200 mV)
Damping Factor210
Digital InputYes (optical / coaxial)
Audio In / Out8 / 2
Subwoofer OutYes
Pure DirectYes
ToP-ARTYes
DC outYes
Standby Power Consumption0.5 W
Power Management (Auto Power Standby)Yes.
