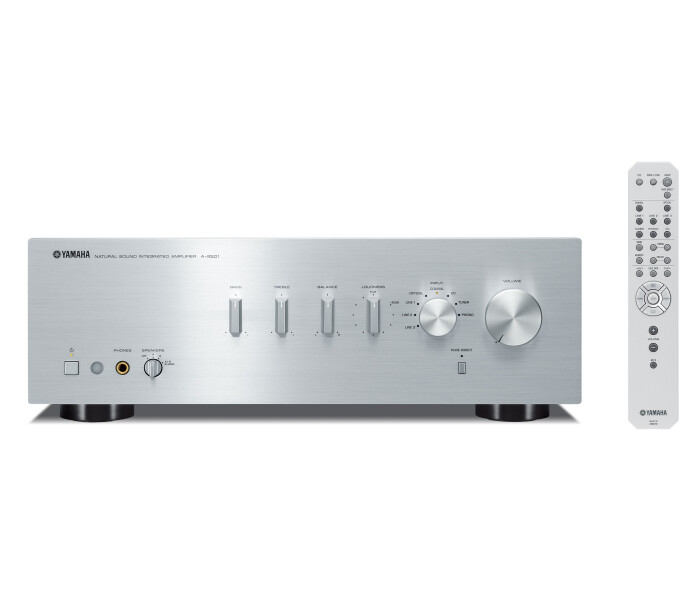

Yamaha A-S501 amplifier (silver)
Description
Impressively high sound quality with a wide range of features and an elegant appearance. An integrated amplifier with the advantage of digital input.
ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
- I/O (input to output) Direct Symmetrical Design
- ART (Anti-Resolution and Tough) Base
- Custom-made power transformer / 12,000uF block capacitors / Aluminum-extruded heat sinks
120W x 2 (max), 85W x 2 (RMS) high power output
Pure Direct Mode for Greater Sound Purity
Continuous Variable Loudness Control
Gold-plated speaker terminals and RCA (CD, Phono) and coaxial terminals
Digital audio inputs for TV or Blu-ray Player
Connection for YBA-11 Bluetooth Wireless Adapter
Simple yet sophisticated design (aluminium front panel)
Auto Power Standby
Specifications
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)85 W + 85 W (0.019% THD)
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)120 W + 120 W
High Dynamic Power/Channel (8/6/4/2 ohms)130/150/185/220 W
Damping Factor240
Frequency Response10 Hz-100 kHz +/-1.0 dB
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)0.019% (50 W/8 ohms)
Signal-to-Noise Ratio (CD)99dB (input shorted, 200 mV)
Audio In / Out8 / 2
Digital InputYes (optical / coaxial)
Subwoofer OutYes
DC outYes
Pure DirectYes
ToP-ARTYes
Standby Power Consumption0.5W
Power Management (Auto Power Standby)Yes
Dimensions (W x H x D)435 x 151 x 387 mm 17-1/8” x 6” x 15-1/4”
Weight10.3 kg 22.7 lbs..
