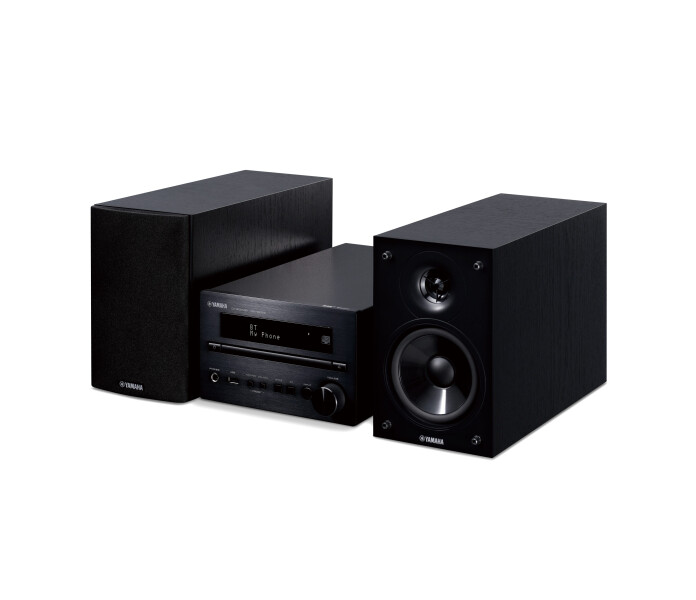

Yamaha MCR-B270DBLBL PianoCraft system (black)

EAN: 4013175229264
Yamaha PianoCraft system (black).
Read more


Hi-Fi authenticity in this compact unit systems from the renowned Yamaha PianoCraft range. An aluminium front panel and Burr-Brown DACs reflect a commitment to sound quality for all audio sources.

Bluetooth® wireless audio streaming
Hi-res audio (192 kHz / 24-bit FLAC / WAV) via USB
Authentic Hi-Fi design and tuning
DAB / DAB+ / FM tuner (service availability may vary by region)
Subwoofer pre-out


Center Unit

Bluetooth Version/Profile: Ver. 4.2 / A2DP, AVRCP [Audio Codec] SBC, AAC
Bluetooth Maximum Communication Range: 10 m / 32.8 ft. 10 in. (without interference)
Disc Type: CD, CD-R, CD-RW (Audio CD, MP3, WMA)
USB: Yes
File Format: MP3, WMA, AAC, WAV(*1), FLAC(*1), AIFF(*1), ALAC(*2) --- (*1) 192 kHz / 24-bit (*2) 48 kHz / 24-bit
Tuner: DAB / FM
Preset Memory: DAB x 30 / FM x 30
Headphone Jack: Yes (6.3 mm)
Analog Audio Input: Yes (3.5 mm STEREO mini Jack × 1)
Digital Audio Input: Optical: Yes
Subwoofer output: Yes
Total Harmonic Distortion(CD to Sp Out, 20 Hz-20 kHz): 0.05 %
Output Power/Channel (6 ohms, 1 kHz, 10% THD): 20 W + 20 W
Standby Power Consumption: 0.3 W (Eco standby) / 1.3 W (Bluetooth® standby on)
Dimensions (W x H x D): 180 x 118 x 322 mm
Weight: 2.7 kg
Speaker System

Woofer: 11 cm (4-3/8″) cone woofer
Tweeter: 2.5 cm (1″) dome tweeter
Input Power (Max/Nominal): 30 W (Nominal)
Frequency Response: 60 Hz-30 kHz
Sensitivity: 84 dB / 2.83 V / 1 m
Crossover Frequency: 6 kHz
Impedance: 6 ohms
Dimensions (W x H x D): 123 x 192 x 298 mm
Weight: 2.2 kg.
