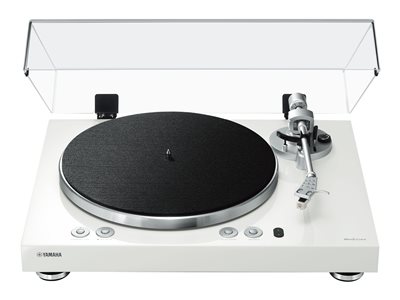

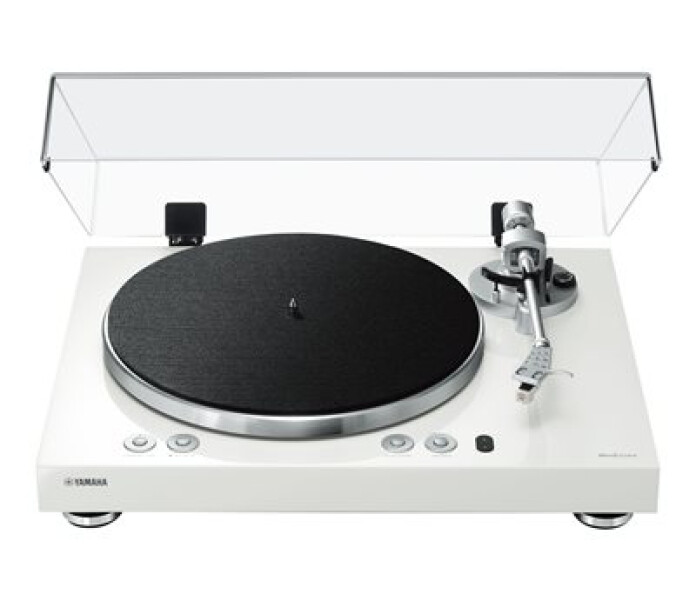

Yamaha MusicCast 500 turntable
Description
A step into the future with a tribute to the past. Meet our game-changing wireless turntable designed for a new generation of audiophiles. Featuring MusicCast multi-room capabilities, share the joy of your record collection in any room.
Wirelessly connect to any MusicCast device for seamless listening
Straight tonearm contributes to sound transparency and openness
Belt drive turntable
Music streaming services built-in
Wi-Fi built-in including support for 2.4 GHz and 5 GHz bands
Specifications
Network SectionFile FormatEthernetWi-FiAirPlayBluetooth SectionVersion/ProfileAudio CodecMaximum Communication RangeTurntableDrive MethodMotorRotation SpeedRotation Speed VariationWow And FlutterPlatterOutput LevelSignal To Noise RatioTonearmTonearmEffective Arm LengthOverhangStylus Pressure Adjustment RangeAcceptable Cartridge WeightAttached CartridgeCartridge TypeOutput VoltageStylus PressureCartridge WeightCartridge HeightHead-shell WeightAudio SpecificationsOutput TerminalOutput LevelSignal to Noise RatioDynamic RangeHarmonic DistortionFrequency ResponseGeneralPower ConsumptionEco-Standby (reference date)Standby Power ConsumptionDimension (W×H×D)Weight
MusicCast VINYL 500 (TT-N503)
MusicCast VINYL 500 (TT-N503)
Turntable
Network SectionFile FormatMP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz
EthernetYes
Wi-FiYes (2.4 / 5 GHz)
AirPlayYes
Bluetooth SectionVersion/ProfileVer. 4.2 / A2DP, AVRCP
Audio CodecSBC, AAC
Maximum Communication Range10 m / 32.8 ft. 10 in. (without interferene)
TurntableDrive MethodBelt drive
MotorDC motor
Rotation Speed33-1/3 rpm, 45 rpm
Rotation Speed Variation±2%
Wow And Flutter0.2%
PlatterAluminium die-cast (Diameter 30 cm)
Output Level450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec)
Signal To Noise Ratio67 dB or higher (A-weighted, 20 kHz, LPF)
TonearmTonearmStatic balance straight tonearm
Effective Arm Length223.5 mm
Overhang19 mm
Stylus Pressure Adjustment Range0-4 g
Acceptable Cartridge Weight15.5-19 g (including headshell)
Attached CartridgeCartridge TypeMM type
Output Voltage2.5 mV (1 kHz, 3.54 cm / sec)
Stylus Pressure3.5 ± 0.5 g
Cartridge Weight5.0 ± 0.3 g
Cartridge Height17.0 ± 0.7 mm
Head-shell Weight10 g (including screws, nuts and wires)
Audio SpecificationsOutput TerminalRCA: 2 (PHONO, LINE)
Output Level2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz)
Signal to Noise Ratio[IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz)
Dynamic Range100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz)
Harmonic Distortion0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz)
Frequency ResponseFs 44.1 kHz 2 Hz to 20 kHz (+0 / -3 dB), Fs 48 kHz 2 Hz to 24 kHz (+0 / -3 dB), Fs 96 kHz 2 Hz to 48 kHz (+0 / -3 dB), Fs 192 kHz 2 Hz to 96 kHz (+0 / -6 dB)
GeneralPower Consumption6 W
Eco-Standby (reference date)0.3 W
Standby Power Consumption1.4 W (Network standby ON, Bluetooth® standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standby ON, Wired)
Dimension (W×H×D)450 x 136 x 368 mm 17-3/4” x 5-3/8” x 14-1/2”
Weight5.7 kg 12.6 lbs..
