GROUND ZERO GZCS K-200VW
Description
Plug´n´play installation

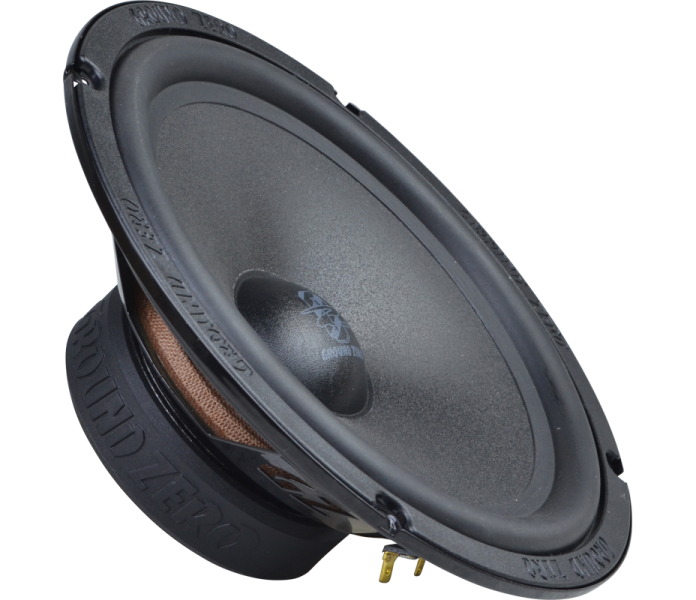

Car specific 200 mm / 8″ midrange speaker for VW and identical brands
compatible with VW and identical brands
Retrofit or replacement for factory loudspeakers
Coated paper cone
Powerful ferrite motor
Resonance free steel basket
6 dB/oct in-line low pass filter
Car specific connection
1 pair / package
Specifications
Compatibility list with ACV 271320-25 speaker adapter:
Volkswagen Caddy III (2K / 2KN) 2003-2015
Volkswagen Caddy IV (2K / 2KN facelift) 2015-2020
Volkswagen Transporter T5 2003-2009
Volkswagen Transporter T5 facelift / T5.1 2009-2015
Volkswagen Multivan T5 2003-2009
Volkswagen Multivan T5 facelift / T5.1 2009-2015
Volkswagen Caravelle T5 2003-2009
Volkswagen Caravelle T5 facelift / T5.1 2009-2015
Volkswagen Golf V (1K) 2003-2008
Volkswagen Golf VI Variant (1KM) 2009-2013
Volkswagen Jetta V (1KM) 2005-2010
Volkswagen Jetta VI (16) 2010-2018
Volkswagen Sharan II (7N) 2010-2022
Volkswagen Tiguan I (5N) 2007-2016
Volkswagen Touran I (1T) 2003-2015
Specification:
Model Car specific midrange speaker
Diameter 200 mm / 8″
Power handling (RMS/max.) 80 / 110 Watts
Impedance 3 Ohms
Efficiency 88.5 dB
Frequency Response 40 Hz – 4.5 kHz
Voice coil 38 mm / 1.5″ copper
Cone Reinforced paper
Mounting Ø 177 mm / 6.97″
Mounting depth 69 mm / 2.72″
Resonance frequency (Fs) 48 Hz
Damping ratio (Qts) 0.61
Equiv. air volume (Vas) 30.3 L / 1.01 ft³
